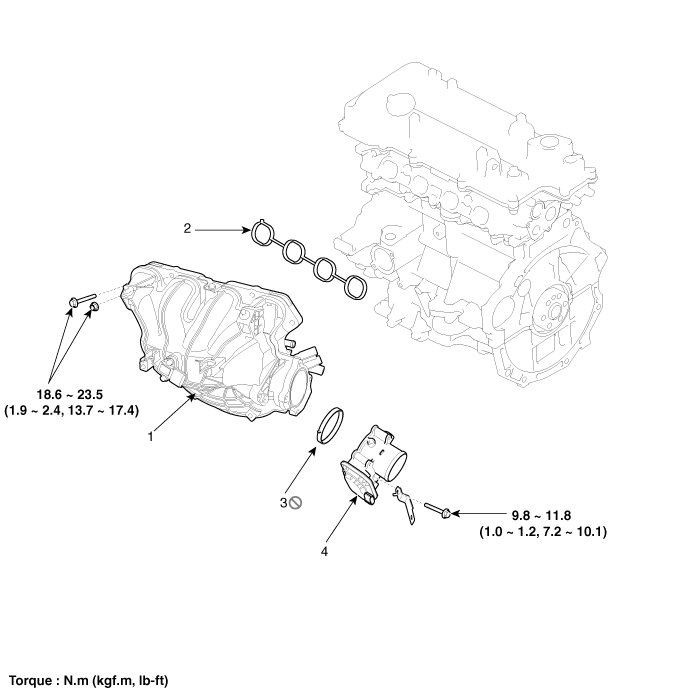

Hyundai Sonata LF: Intake And Exhaust System / Intake Manifold Components and Components Location

Air Cleaner Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. DIsconnect the air duct (A). 4. Remove the air duct and air cleaner assembly...

Intake Manifold Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disconnect the engine wiring connector and haness clamp and disconnect the wiring from intake manifold...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Oil Pump Repair procedures

Removal and Installation 1. Remove the timing chain cover. (Refer to Timing System - "Timing Chain Cover") 2. Remove the pump cover (A). Tightening torque : 8.8 ~ 13.7N.m (0.9 ~ 1.4kgf.m, 6.5 ~ 10.1 lb-ft) 3. Remove the inner rotor (B) and outer rotor (C)...

Hyundai Sonata LF 2014-2019 Service Manual: Instrument Cluster Description and Operation

Description Communication Network Diagram AbbreviationExpalnationACUAirbag Control UnitADMAssist Door ModuleB_CANBody Controller Area NetworkBCMBody Control ModuleBSDBlind Spot DetectionC_CANChassis Controller Area NetworkCLUCluster ModuleDATCDual Automatic Temp ControlDDMDriver Door ModuleESCElectronic Stability ProgramEMSEngine Management SystemLDWSLane Departure Warning SystemM_CANMulti media Controller Area NetworkMDPSMotor Driven Power SteeringP_CANPowertrain Controller Area NetworkPSMPower Seat ModuleSASSteering Angle SensorSJBSmart Junction BlockSMKSmart Key UnitSPASSmart Parking Assist SystemTCUTransmission Control UnitTPMSTire Pressure Monitoring SystemVDCVehicle Dynamic ControlTMUTelematics SystemABSAnti-lock Brake SystemSCCSmart Cruise Control Cluster Variant Coding As we have more options (ESC, MDPS, SCC, etc...
