Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Fuel Filler Door / Fuel Filler Door Open Switch Components and Components Location

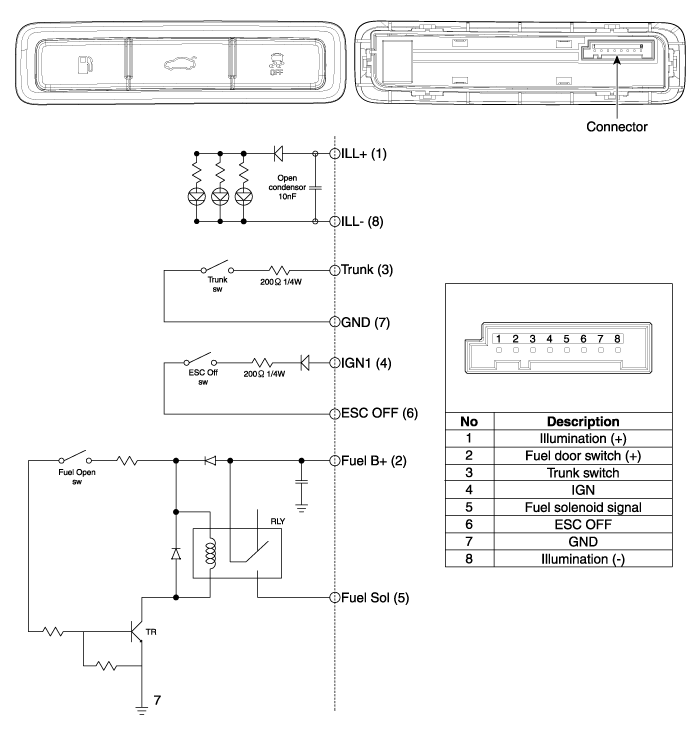

Components

Fuel Filler Door Release Actuator Repair procedures
Inspection 1. Remove the left luggage side trim. (Refer to Body - "Trunk Trim") 2. Loosen the fuel filler actuator mounting bolts (2EA). 3. Remove the fuel filler door release actuator (B ...

Fuel Filler Door Open Switch Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Using a screwdriver or remover, remove the fuel filler door open switch (A).     Take care not to scratch the ...
