Components

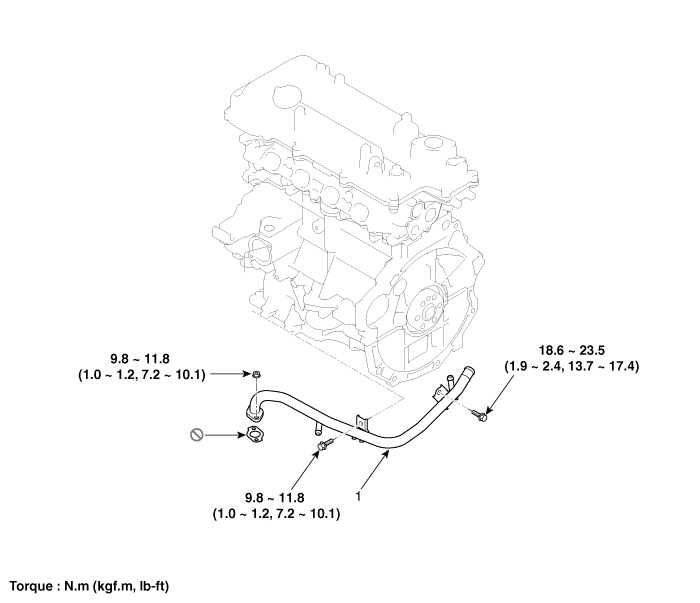

1. Water pipe

Water Temperature Control Assembly Repair procedures
Removal and Installation 1. Loosen the drain plug, and drain the engine coolant. Remove the radiator cap to drain with speed. 2. Disconnect the battery negative terminal. 3. Remove the air ...

Water Pipe Repair procedures
Removal and Installation 1. Remove the water temperature control assembly. (Refer to Colling System - "Water Temperature Control Assembly") 2. Remove the water pipe (A). Tightening torque ...
