Hyundai Sonata: Cooling System / Thermostat Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Engine Mechanical System / Cooling System / Thermostat Components and Components Location

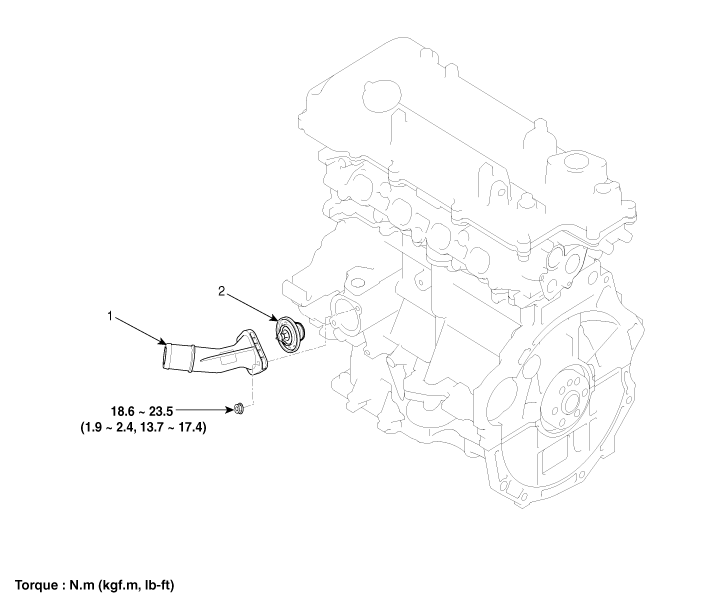

Components

1. Water inlet fitting
2. Thermostat
