Hyundai Sonata: Brake System / Stop Signal Electronic Module Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Brake System / Brake System / Stop Signal Electronic Module Components and Components Location

Components

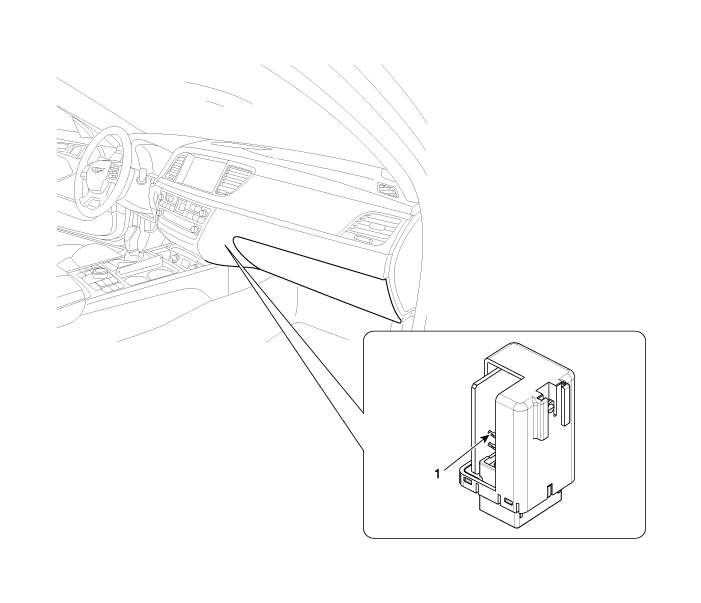

1. Stop signal electronic module (SSEM)


Stop Lamp Switch Repair procedures
Adjustment 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the lower crash pad. (Refer to Body - "Crash Pad") 3. Remove the knee airbag. (Refer to Rs ...

Stop Signal Electronic Module Specifications
Specifications CategoryDataOperation temperature range (°C)-40 ~ 85Preserving temperature range (°C)-40 ~ 105Operating voltage (V)5.8 ~ 16Rated current (A)15 ...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Schematic Diagrams
Circuit Diagram (1) Circuit Diagram (2) Circuit Diagram (3) SRSCM Connector Terminal PinFunction (Connector A)PinFunction (Connector B)A1IGN-1B1Side impact sensor front, Passenger-High (+)A2Front impact sensor driver-High (+)B2Side impact sensor front, Passenger-Low (-)A3Front impact sensor ...

Hyundai Sonata LF 2014-2019 Service Manual: Repair procedures
Operation and Leakage Check Check all of the following items: ComponentProcedureBrake Booster (A)Check brake operation by applying the brakes during a test drive. If the brakes do not work properly, check the brake booster. Replace the brake booster as an assembly if it does not work properl ...
