Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Crash Pad / Steering Column Shroud Panel Components and Components Location

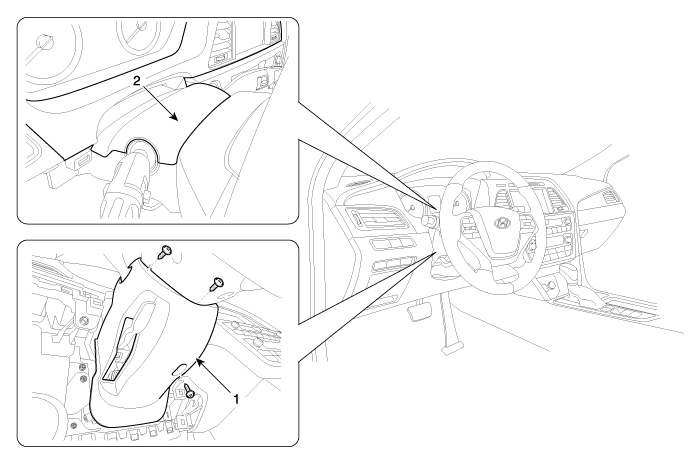

Component Location

1. Steering column shroud lower panel
2. Steering column shroud upper panel

Glove Box Upper Cover Assembly Repair procedures
Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with pro ...

Steering Column Shroud Panel Repair procedures
Replacement [Steering Column Shroud Upper Panel]     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use ...
