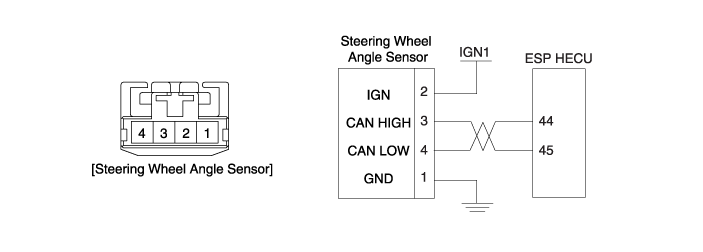

Hyundai Sonata LF: ESP(Electronic Stability Program) System / Steering Angle Sensor Schematic Diagrams

Steering Angle Sensor Description and Operation

Description Steering Wheel Angle Sensor detects rotating direction of the vehicle. Rotating direction detected by the sensor is communicated with HECU as CAN signal involving information about the angle through CAN communication line...

Steering Angle Sensor Repair procedures

Adjustment Calibration (Setting up the zero angle) Steering Wheel Angle Sensor of a absolute angle type (CAN type) measures the angle under the standard of the zero angle set...
