Hyundai Sonata: Your vehicle at a glance / Interior overview

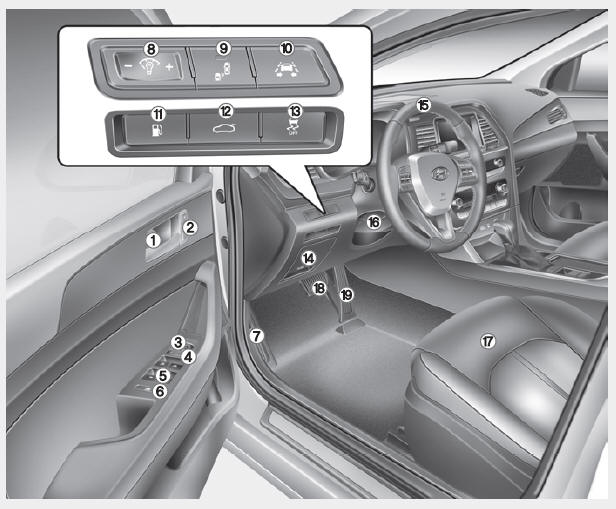

1. Door lock/unlock button
2. Driver position memory system
3. Side view mirrors control switch
4. Central door lock switch
5. Power window switches
6. Power window lock switch
7. Hood release lever
8. Instrument panel illumination control switch
9. Blind spot detection system button
10. Lane keeping assist system button
11. Fuel filler door opener button
12. Trunk release button
13. ESC OFF button
14. Fuse box
15. Steering wheel
16. Steering wheel tilt/telescope lever
17. Seat
18. Brake pedal
19. Accelerator pedal

Exterior overview
1. Hood 2. Headlamp 3. DRL/Parking lamp 4. Tires and wheels 5. Side view mirrors 6. Sunroof 7. Front windshield wiper blades 8. Windows 1. Antenna 2. Doors 3. Fuel filler door 4. Rear parking assist ...

Instrument panel overview
1. Light control/Turn signals 2. Steering wheel audio controls*/ Bluetooth® wireless technology hands-free controls 3. Instrument cluster 4. Driver's front air bag 5. Horn 6. Cruise controls 7. Wipe ...

Other information:

Hyundai Sonata LF 2014-2019 Owners Manual: Releasing the parking brake
To release the EPB (Electronic Parking Brake), press the EPB switch in the following condition: Place the Engine Start/Stop button in the ON position. Depress the brake pedal. Make sure the Parking Brake Warning Light goes off. To release EPB (Electronic Parking Brake) automatically: Shift l ...

Hyundai Sonata LF 2014-2019 Service Manual: Instrument Cluster Components and Components Location
Components Connector Pin Information NoDescriptionNoDescription1-21Speaker (+)2Illumination (-)22Speaker (+)3Rheostat switch (Down)_Input23Immobilizer_Input4Rheostat switch (Up)_Input24AT ('P' Position)5-25AT ('R' Position)6Oil press switch_Input26AT ('N' Position)7Washer level (Low signal)_Inpu ...
