Hyundai Sonata: Driving your vehicle / Cruise Control
Cruise Control Operation
.gif)

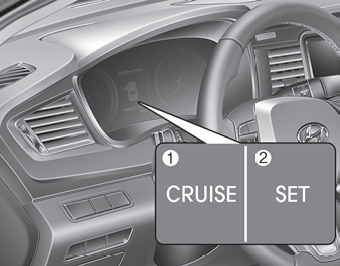

1. CRUISE indicator
2. SET indicator
The Cruise Control system allows you to drive at speeds above 20 mph (30 km/h) without depressing the accelerator pedal.
WARNING
Take the following precautions:
- If the Cruise Control is left on, (CRUISE indicator light in the instrument cluster illuminated) the Cruise Control can be activated unintentionally. Keep the Cruise Control system off (CRUISE indicator light OFF) when the Cruise Control is not in use, to avoid inadvertently setting a speed.
- Use the Cruise Control system only when traveling on open highways in good weather.
- Do not use the Cruise Control when it may not be safe to keep the vehicle
at a constant speed:
- Driving in heavy or varying speed traffic.
- On slippery (rainy, icy or snow covered) roads.
- Hilly or winding roads.
- Very windy areas.
- When driving with limited view (possibly due to bad weather, such as fog, snow, rain or sandstorm).
- To set Cruise Control speed
- To increase Cruise Control speed
- To decrease Cruise Control speed
- Cruise Control will be canceled when
- To resume preset Cruising speed
- To turn Cruise Control off
Limitation of SMART mode
The SMART mode may be limited in following situations. (The OFF indicator illuminates
in those situations.)
The driver manually moves the shift lever : It deactivates SMART mode. The
vehicle driv ...
To set Cruise Control speed
1. Push the CRUISE button on the steering wheel to turn the system on. The CRUISE
indicator will illuminate.
2. Accelerate to the desired speed, which must be more than 20 mph (30 km/h).
3. Push th ...
