Hyundai Sonata: Cruise Control / To set Cruise Control speed

1. Push the CRUISE button on the steering wheel to turn the system on. The CRUISE indicator will illuminate.

2. Accelerate to the desired speed, which must be more than 20 mph (30 km/h).

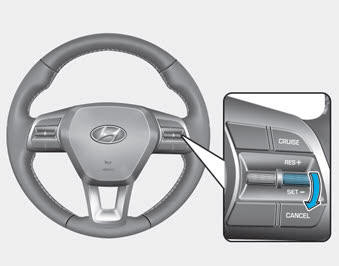

3. Push the toggle switch (1) down (SET-), and release it. The SET indicator light will illuminate.

4. Release the accelerator pedal.

Information

The vehicle may slow down or speed up slightly while going uphill or downhill.

Cruise Control
Cruise Control Operation 1. CRUISE indicator 2. SET indicator The Cruise Control system allows you to drive at speeds above 20 mph (30 km/h) without depressing the accelerator pedal. WARNING Take th ...

To increase Cruise Control speed
Push the toggle switch (1) up (RES+) and hold it, while monitoring the SET speed on the instrument cluster. Release the toggle switch when the desired speed is shown and the vehicle will accele ...
