Hyundai Sonata: Cruise Control / Cruise Control will be canceled when
.jpg)
- Depressing the brake pedal.

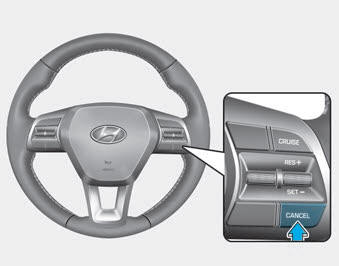

- Pressing the CANCEL switch located on the steering wheel.
- Pushing the CRUISE button. Both the CRUISE indicator and the SET indicator will turn OFF.
- Moving the shift toggle switch into N (Neutral).
- Decreasing the vehicle speed lower than the memory speed by 5 mph (10 km/h).
- Decreasing the vehicle speed to less than approximately 20 mph (30 km/h).
- The ESC (Electronic Stability Control) is operating.
- Downshifting to the 2nd gear in Manual shift mode.
Information
Each of the above actions will cancel Cruise Control operation (the SET indicator light in the instrument cluster will go off), but only pressing the CRUISE button will turn the system off. If you wish to resume Cruise Control operation, push the toggle switch up (RES+) located on your steering wheel. You will return to your previously preset speed, unless the system was turned off using the CRUISE button.
To decrease Cruise Control speed
Push the toggle switch (1) down (SET-) and hold it. Your vehicle will gradually
slow down. Release the toggle switch at the speed you want to maintain.
Push the toggle switch (1) down (SET-) and ...
To resume preset Cruising speed
Push the toggle switch (1) up (RES+). If the vehicle speed is over 20 mph (30
km/h), the vehicle will resume the preset speed. ...
