Hyundai Sonata: Front Suspension System / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Suspension System / Front Suspension System / Components and Components Location

Components

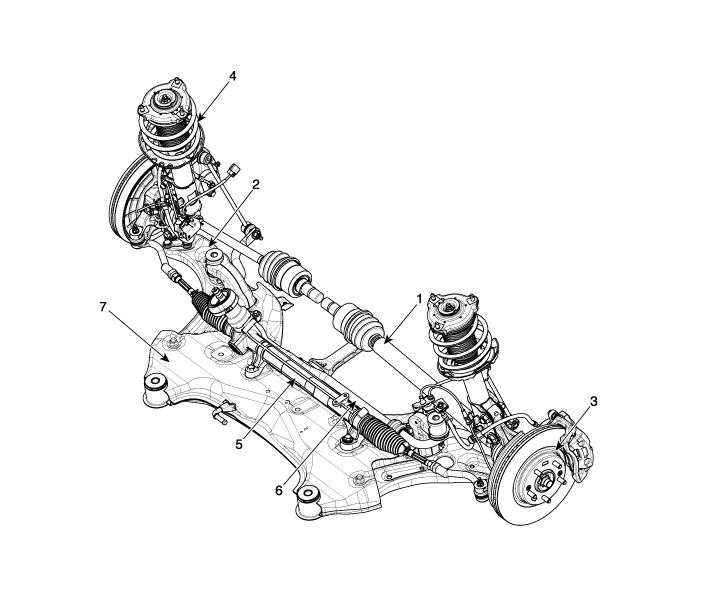

1. Drive shaft 2. Lower arm 3. Front disc 4. Front strut assembly	5. Steering gearbox 6. Front stabilizer bar 7. Sub frame

Front Suspension System

...

Front Strut Assembly Components and Components Location

Components 1. Strut assembly2. Insulator3. Strut bearing4. Spring upper pad5. Coil spring6. Dust cover7. Bumper rubber8. Spring lower pad ...
