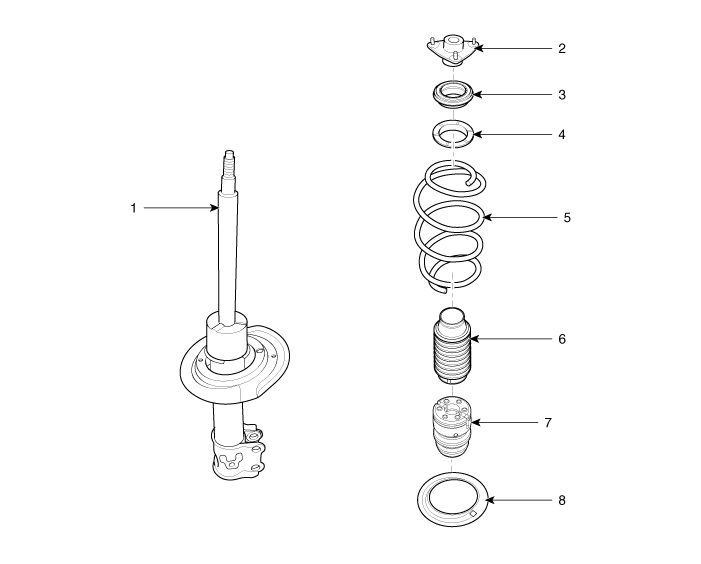

Components

1. Strut assembly
2. Insulator
3. Strut bearing
4. Spring upper pad
5. Coil spring
6. Dust cover
7. Bumper rubber
8. Spring lower pad



Components and Components Location
Components 1. Drive shaft2. Lower arm3. Front disc4. Front strut assembly5. Steering gearbox6. Front stabilizer bar7. Sub frame ...

Front Strut Assembly Repair procedures
Replacement 1. Raise the vehicle, and make sure it is securely supported. 2. Remove the wheel cap (A).     Be careful not to damage to the wheel cap (A) when removing the it ...
