Hyundai Sonata: Cooling System / Cooling Fan Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Components and Components Location

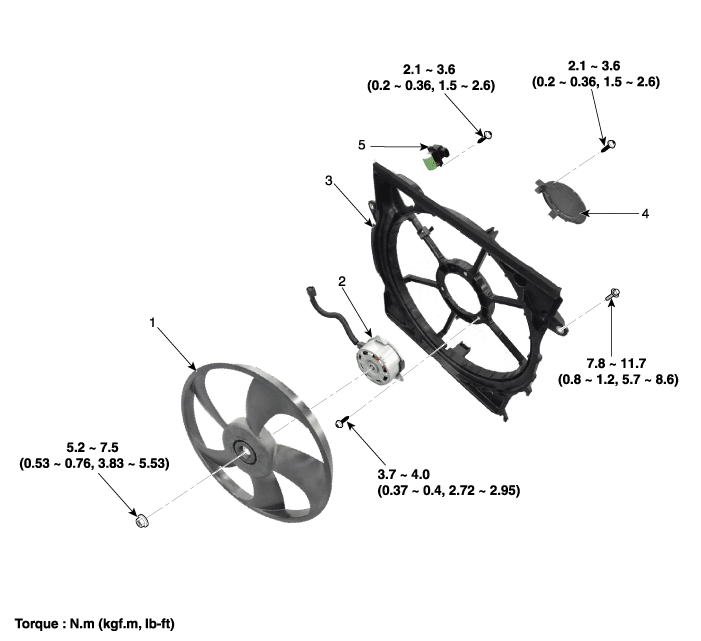

Components

1. Cooling fan controller (PWM)
2. Fan motor
3. Cooler fan
4. Cooling fan shroud

Radiator Repair procedures
Removal and Installation 1. Remove the cooling fan. (Refer to Cooling System - "Cooling Fan") 2. Loosen the drain plug, and drain the coolant. 3. Remove the radiator cap to speed drainin ...

Cooling Fan Description and Operation
Description Cooling fan is operated by 2 step (High/Low) and control in according to coolant temperature, vehicle speed and ON/OFF of air conditioner in engine ECM. ...
