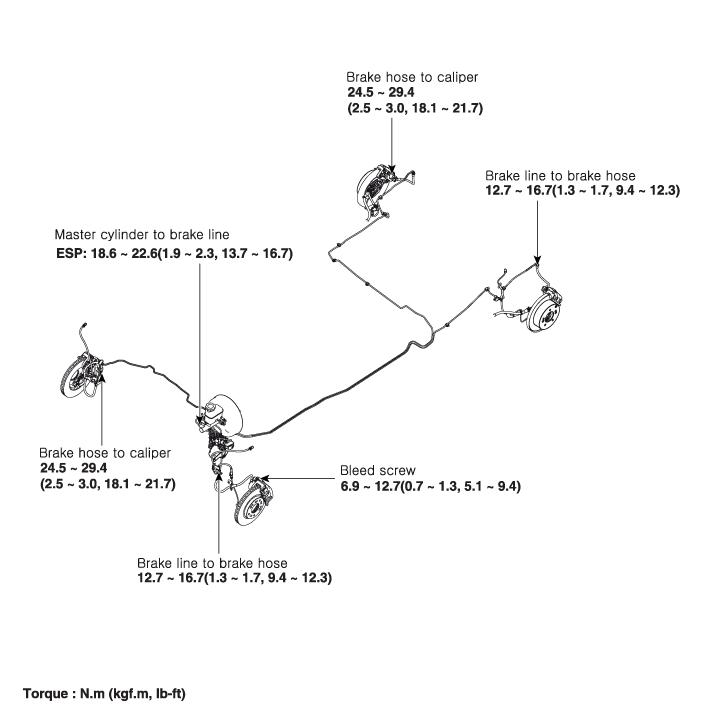

Hyundai Sonata LF: Brake System / Brake Line Components and Components Location

Master Cylinder Repair procedures

Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the air cleaner assembly (A). 3. Disconnect the brake fluid level switch connector (A)...

Brake Line Repair procedures

Removal 1. Disconnect the brake fiuid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the master cylinder reservior with a syringe...
