Hyundai Sonata: Light / Smart High Beam
.jpg)
The Smart High Beam is a system that automatically adjusts the headlamp range (switches between high beam and low beam) according to the brightness of other vehicles and road conditions.
- Operating condition
- Warning light and message
- Turn signals and lane change signals
- Battery saver function
- Headlamp delay function
- AFLS (Adaptive Front Lighting System) a.k.a. DBL (Dynamic Bending Light)
- Daytime running light (DRL)
Exterior Lights
Lighting control

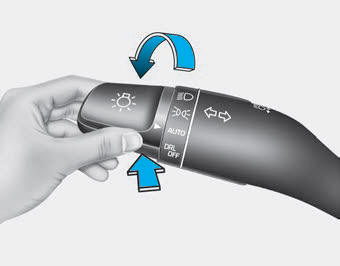

To operate the lights, turn the knob at the end of the control lever to one of
the following positions:
(1) DRL OFF position
(2) AUTO light position
(3) Parking lamp position
(4) He ...
Operating condition
1. Place the light switch in the AUTO position.
2. Turn on the high beam by pushing the lever away from you.
The smart high beam () indicator
will illuminate.
3. The Smart High Beam will turn on when ...
