Hyundai Sonata: Light / Exterior Lights

Lighting control

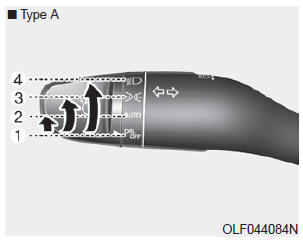

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

(1) DRL OFF position
(2) AUTO light position
(3) Parking lamp position
(4) Headlamp position

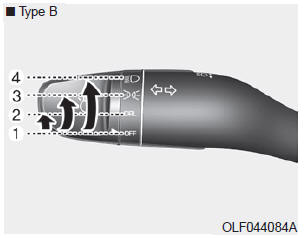

(1) OFF position
(2) DRL position
(3) Parking lamp position
(4) Headlamp position

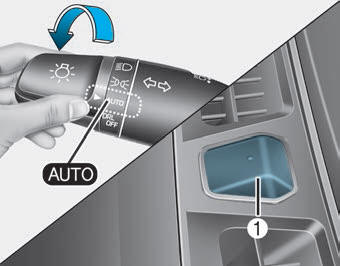

AUTO light position

The parking lamp and headlamp will be turned ON or OFF automatically depending on the amount of light outside the vehicle.

Even with the AUTO light feature in operation, it is recommended to manually turn ON the lamps when driving at night or in a fog, or when you enter dark areas, such as tunnels and parking facilities.

NOTICE

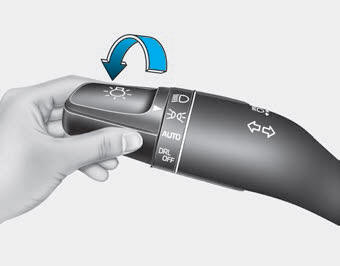

Parking lamp position ()

The parking lamp, license plate lamp and instrument panel lamp are turned ON.

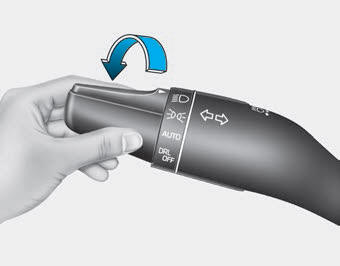

Headlamp position ()

The headlamp, parking lamp, license plate lamp and instrument panel lamp are turned ON.

Information

The ignition switch must be in the ON position to turn on the headlamp.

High beam operation

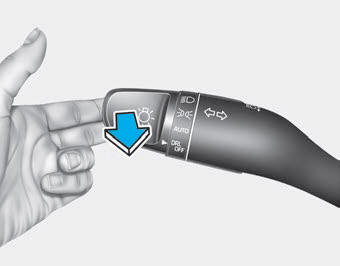

To turn on the high beam headlamp, push the lever away from you. The lever will return to its original position. The high beam indicator will light when the headlamp high beams are switched on.

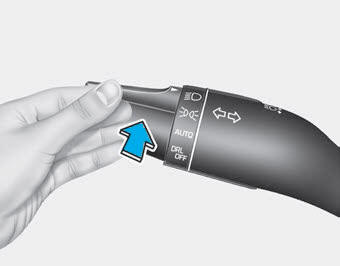

To turn off the high beam headlamp, pull the lever towards you. The low beams will turn on.

WARNING

Do not use high beam when there are other vehicles approaching you. Using high beam could obstruct the other driver's vision.

To flash the high beam headlamp, pull the lever towards you, then release the lever. The high beams will remain ON as long as you hold the lever towards you.

Light
...

Smart High Beam
The Smart High Beam is a system that automatically adjusts the headlamp range (switches between high beam and low beam) according to the brightness of other vehicles and road conditions. ...
