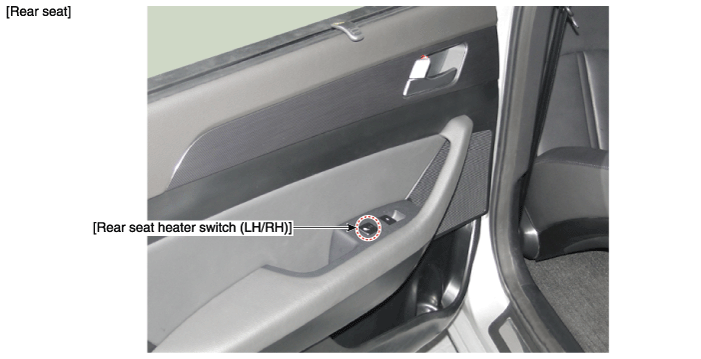

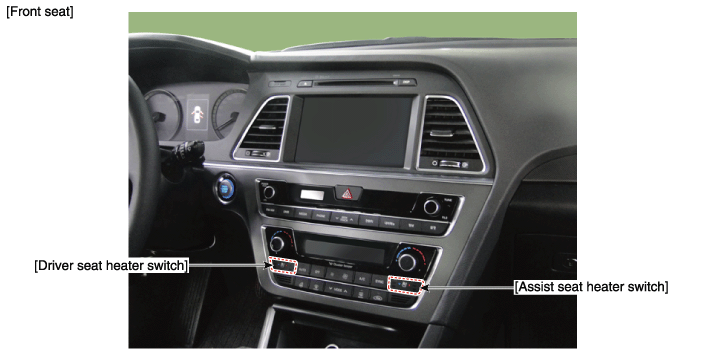

Hyundai Sonata LF: Seat Electrical / Seat Heater Switch Components and Components Location

Seat Heater Repair procedures

Inspection Front Seat Heater 1. Check for continuity and measure the resistance between terminals No 3 and No 6. Standard value Driver / Assists (cushion + back) : 1...

Seat Heater Switch Schematic Diagrams

C..
