Hyundai Sonata LF: Fuses And Relays / Relay Box (Passenger Compartment) Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment) Components and Components Location

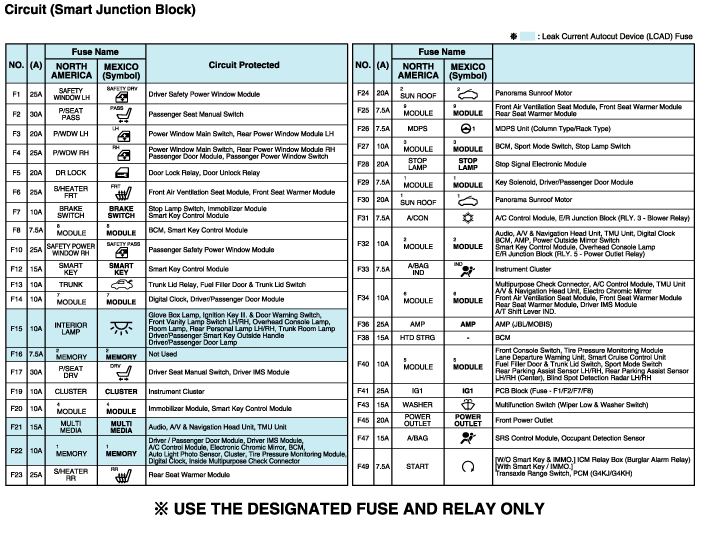

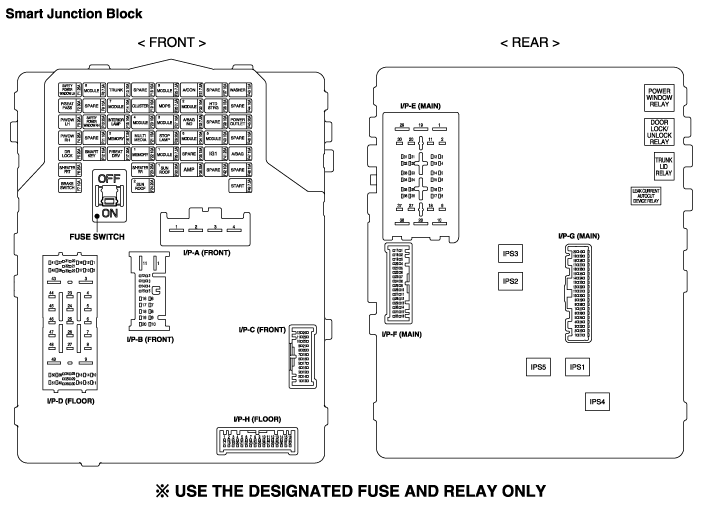

Component Location
[Interior Junction Block]

    Relay Box (Engine Compartment) Repair procedures

    Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay block. Power Relay (Type A) Check for continuity between the terminals...

    Relay Box (Passenger Compartment) Description and Operation

    Description Auto Cut System Of Dark Current AbbreviationExpalnationACUAirbag Control UnitADMAssist Door ModuleB_CANBody Controller Area NetworkBCMBody Control ModuleBSDBlind Spot DetectionC_CANChassis Controller Area NetworkCLUCluster ModuleDATCDual Automatic Temp ControlDDMDriver Door ModuleESCElectronic Stability ProgramEMSEngine Management SystemLDWSLane Departure Warning SystemM_CANMulti media Controller Area NetworkMDPSMotor Driven Power SteeringP_CANPowertrain Controller Area NetworkPSMPower Seat ModuleSASSteering Angle SensorSJBSmart Junction BlockSMKSmart Key UnitSPASSmart Parking Assist SystemTCUTransmission Control UnitTPMSTire Pressure Monitoring SystemVDCVehicle Dynamic ControlTMUTelematics SystemABSAnti-lock Brake SystemSCCSmart Cruise Control Smart Junction Block (SJB) General function : Interior Junction Block + some functions of BCM It controls loads with CAN communication and IPS...
