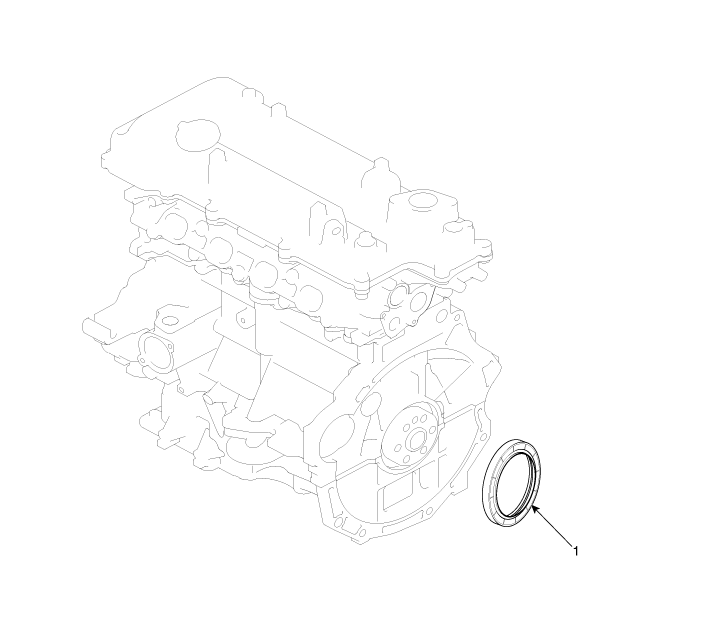

Hyundai Sonata LF: Cylinder Block / Rear Oil Seal Components and Components Location

Water Jacket Seperator Repair procedures

Remove and Installation 1. Remove the cylinder head assembly. (Refet to Cylinder Head Assembli - "Cylinder Head") 2. Remove the water jacket seperator (A)...

Rear Oil Seal Repair procedures

Removal 1. Remove the transaxle assembly. (Refer to transaxle - "Manual Transaxle assembly, Auto Transaxle assembly") 2. MT : Remove the flywheel...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Instrument Cluster Description and Operation

Description Communication Network Diagram AbbreviationExpalnationACUAirbag Control UnitADMAssist Door ModuleB_CANBody Controller Area NetworkBCMBody Control ModuleBSDBlind Spot DetectionC_CANChassis Controller Area NetworkCLUCluster ModuleDATCDual Automatic Temp ControlDDMDriver Door ModuleESCElectronic Stability ProgramEMSEngine Management SystemLDWSLane Departure Warning SystemM_CANMulti media Controller Area NetworkMDPSMotor Driven Power SteeringP_CANPowertrain Controller Area NetworkPSMPower Seat ModuleSASSteering Angle SensorSJBSmart Junction BlockSMKSmart Key UnitSPASSmart Parking Assist SystemTCUTransmission Control UnitTPMSTire Pressure Monitoring SystemVDCVehicle Dynamic ControlTMUTelematics SystemABSAnti-lock Brake SystemSCCSmart Cruise Control Cluster Variant Coding As we have more options (ESC, MDPS, SCC, etc...

Hyundai Sonata LF 2014-2019 Service Manual: Panorama Sunroof

Components and Components Location Component Location 1. Panorama sunroof2. Panorama sunroof switch3. Panorama sunroof motor & controller4. Roller blind motor & slave controller Schematic Diagrams Circuit Diagram NoSunroof wiringconnector(Vehicle side)Sunroof wiringconnector(Motor)Panorama glass motor(Master)Blind motor(Slave)1GND 1 GND 1GND 22Glass statussignal / tool(parameter)Glass status signal / tool(parameter)Blind signal3BCM EnableBCM Enable-4Tilt up switchTilt up switch-5GND 2--6BATT 1BATT 1BATT 27---8Vehicle speed signalVehicle speed signalVehicle speed signal9Glass open switch Glass open switchBlind open switch10Glass close switch Glass close switchBlind close switch11BATT 212Blind open switch 13Blind close switch 14Blind signal Panorama Sunroof Switch Components and Components Location Components Panorama Sunroof Switch Repair procedures Inspection 1...
