Hyundai Sonata: Lubrication System / Oil Pump Components and Components Location

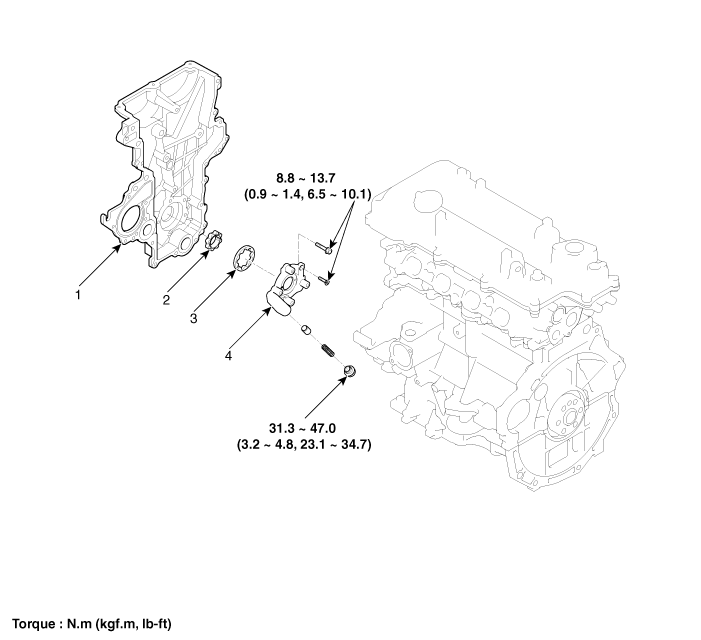

Components

1.  Timing chain cover
2.  Inner rotor
3.  Outer rotor
4.  Pump cover

Engine Oil Repair procedures
Replacement     • Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. ...

Oil Pump Repair procedures
Removal and Installation 1. Remove the timing chain cover. (Refer to Timing System - "Timing Chain Cover") 2. Remove the pump cover (A). Tightening torque : 8.8 ~ 13.7N.m (0.9 ~ 1.4kgf.m, ...
