Hyundai Sonata LF: Engine Control System / Knock Sensor (KS) Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Engine Control / Fuel System / Engine Control System / Knock Sensor (KS) Schematic Diagrams

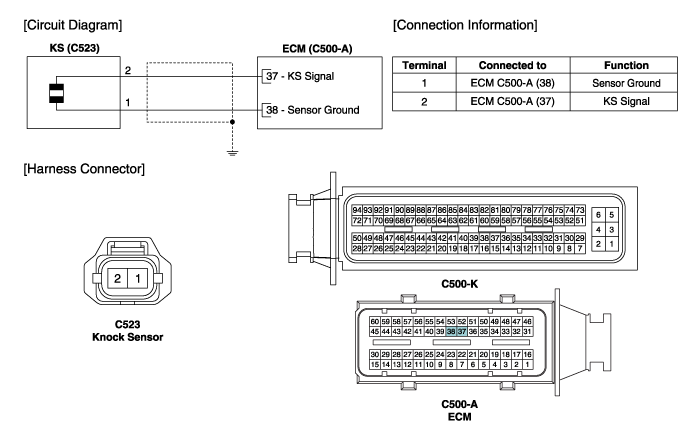

Circuit Diagram

    Knock Sensor (KS) Specifications

    S..

    Knock Sensor (KS) Repair procedures

    Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the intake manifold (Refer to “Intake And Exhaust System” in EM group)...
