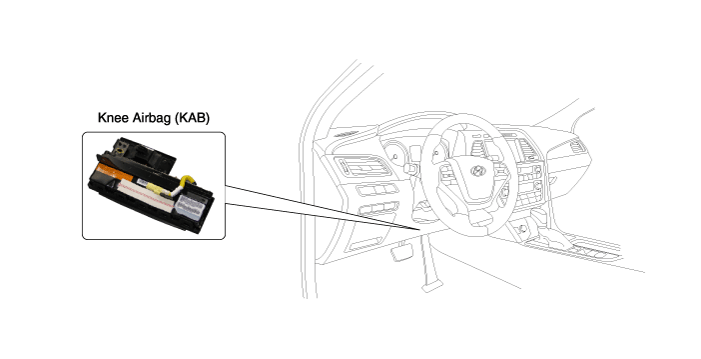

Components

Knee Airbag (KAB) Module Description and Operation
Description The Knee Airbag (KAB) is installed inside the crash pad lower panel and protects the driver in the event of a frontal crash. The SRSCM determines if and when to deploy the KAB. ...

Knee Airbag (KAB) Module Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") ...
