Hyundai Sonata LF: Engine Control System / Intake Air Temperature Sensor (IATS) Schematic Diagrams

Hyundai Sonata LF 2014-2019 Service Manual / Engine Control / Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic Diagrams

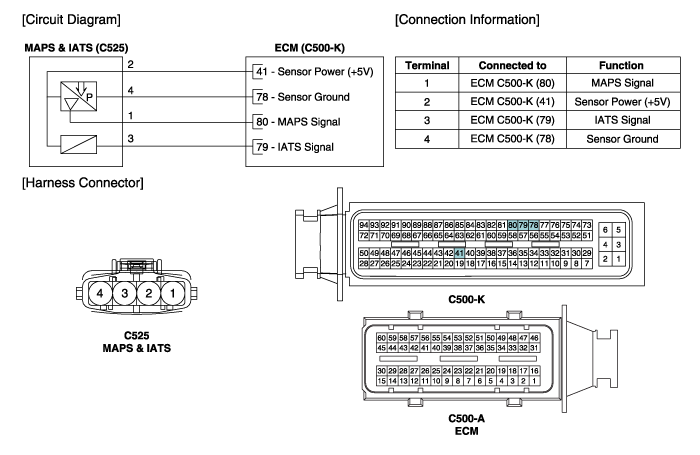

Circuit Diagram

    Intake Air Temperature Sensor (IATS) Specifications

    Specification TemperatureResistance (k?)°C°F-40-4040.93 ~ 48.35-20-413.89 ~ 16.030325.38 ~ 6.0910503.48 ~ 3.9020682.31 ~ 2.57401041.08 ~ 1.21501221...

    Intake Air Temperature Sensor (IATS) Repair procedures

    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance between the IATS terminals 3 and 4. 4...
