Hyundai Sonata: ESP(Electronic Stability Program) System / Front Wheel Speed Sensor Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Brake System / ESP(Electronic Stability Program) System / Front Wheel Speed Sensor Components and Components Location

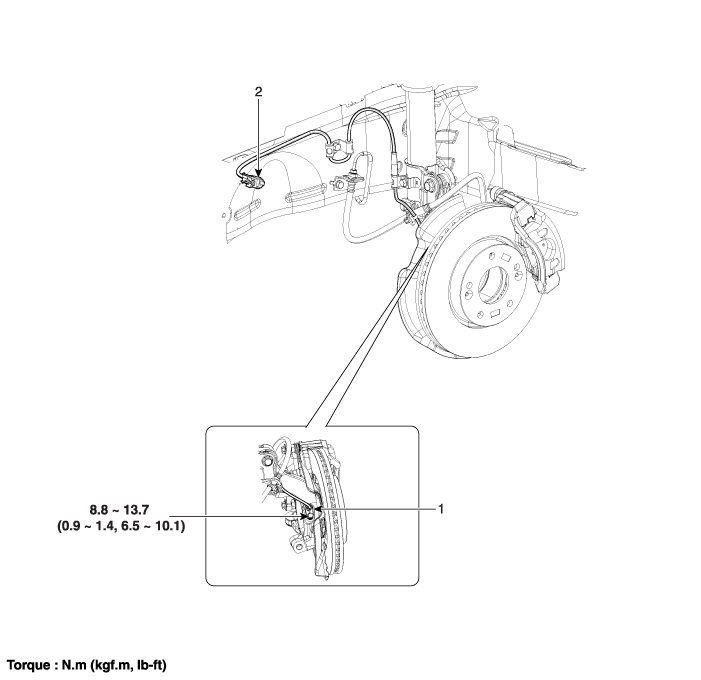

Components

1. Front wheel speed sensor connector
2. Front wheel speed sensor

ESP Control Unit Repair procedures
Removal 1. Turn the ignition switch OFF. 2. Pull up the lock of the HECU connector , then disconnect the connector. 3. Disconnect the brake tubes from the HECU by unlocking the nuts counte ...

Front Wheel Speed Sensor Repair procedures
Removal 1. Raise the vehicle, and make sure it is securely supported. 2. Remove the wheel cap(A).     Be careful not to damage to the wheel cap(A) when removing the it. ...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Repair procedures
Removal 1. Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") 2. Remove the high pitch horn (A) and low pitch horn (B) after disconnect the horn connector (C) and loosening the mounting the bolt. Installation 1. Install the horns after connect the horn connector ...

Hyundai Sonata LF 2014-2019 Service Manual: Stop Lamp Switch Repair procedures
Adjustment 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the lower crash pad. (Refer to Body - "Crash Pad") 3. Remove the knee airbag. (Refer to Rstraint - "Air Bag Module") 4. Confirm the gap between stop lamp switch and bracket. Stop lamp ...
