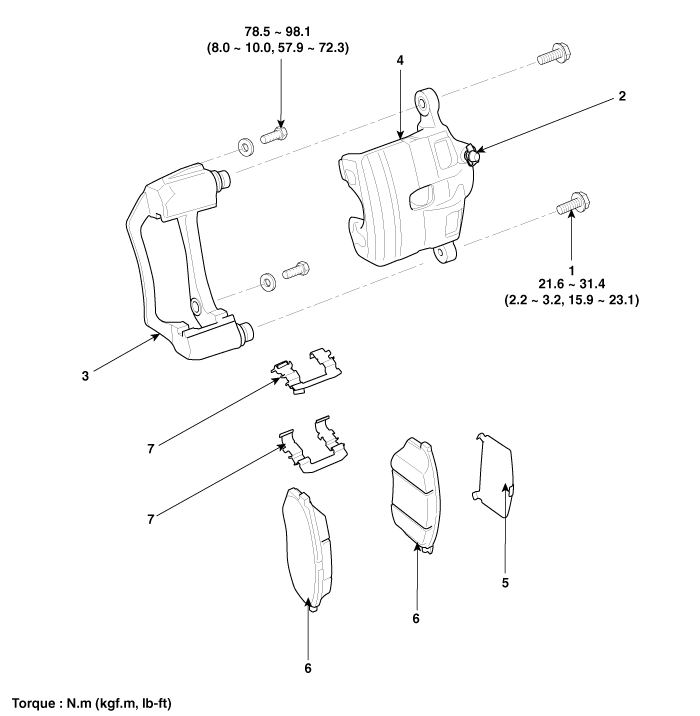

Hyundai Sonata LF: Brake System / Front Disc Brake Components and Components Location

Brake Pedal Repair procedures

Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 3...

Front Disc Brake Repair procedures

Removal 1. Raise the vehicle, and make sure it is securely supported. 2. Remove the wheel cap(A).     Be careful not to damage to the wheel cap (A) when removing the it...
