Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover Components and Components Location

Component Location
[LH]

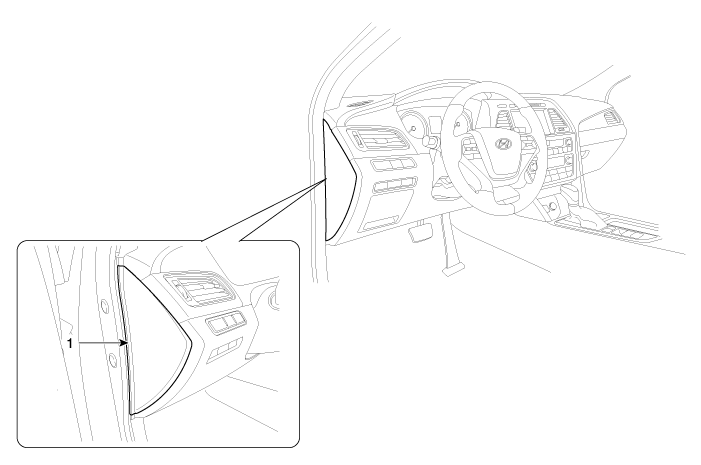

1. Crash pad side cover [LH]


[RH]

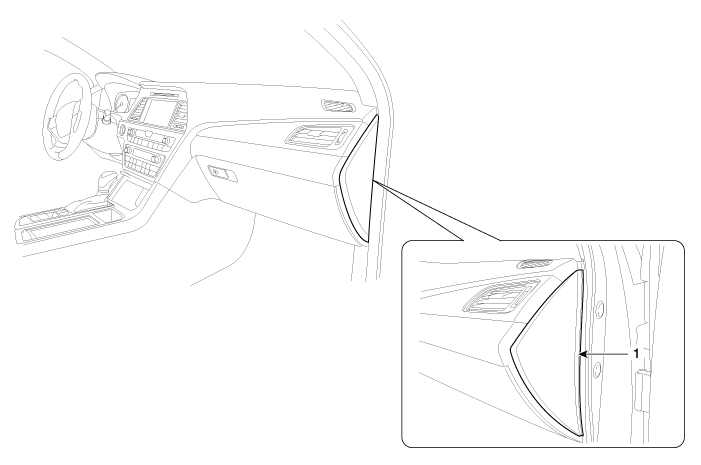

1. Crash pad side cover [RH]


Steering Column Shroud Panel Repair procedures
Replacement [Steering Column Shroud Upper Panel]     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use ...

Crash Pad Side Cover Repair procedures
Replacement     • Put on gloves to protect your hands.     • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with pr ...
