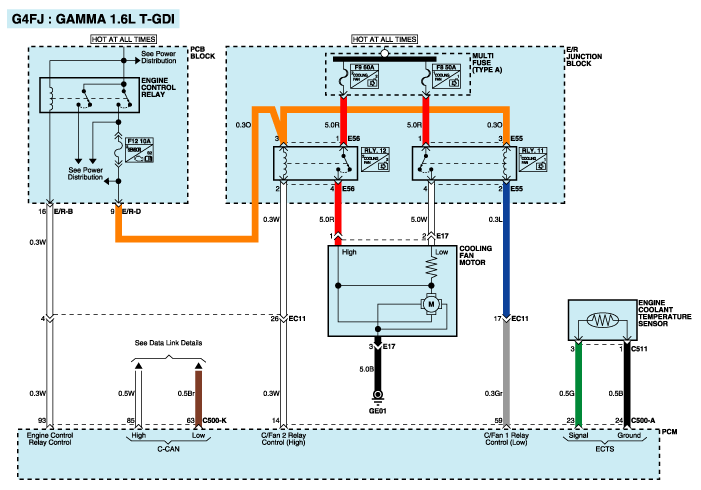

Hyundai Sonata LF: Cooling System / Cooling Fan Schematic Diagrams

Cooling Fan Specifications

Specification ???? Motor capacity (W)170CTAX12200Fan typePuller Fan speed controlResiser (HI-LOW-OFF ) Air volume (?/h)2,650 -8% min. 2,800 min...

Cooling Fan Repair procedures

Removal and Installation Cooling Fan Assembly 1. Disconnect the battery terminals. 2. Remove the under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 3...
