Hyundai Sonata: Blind Spot Detection system / Blind Spot Detection Switch Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body Electrical System / Blind Spot Detection system / Blind Spot Detection Switch Components and Components Location

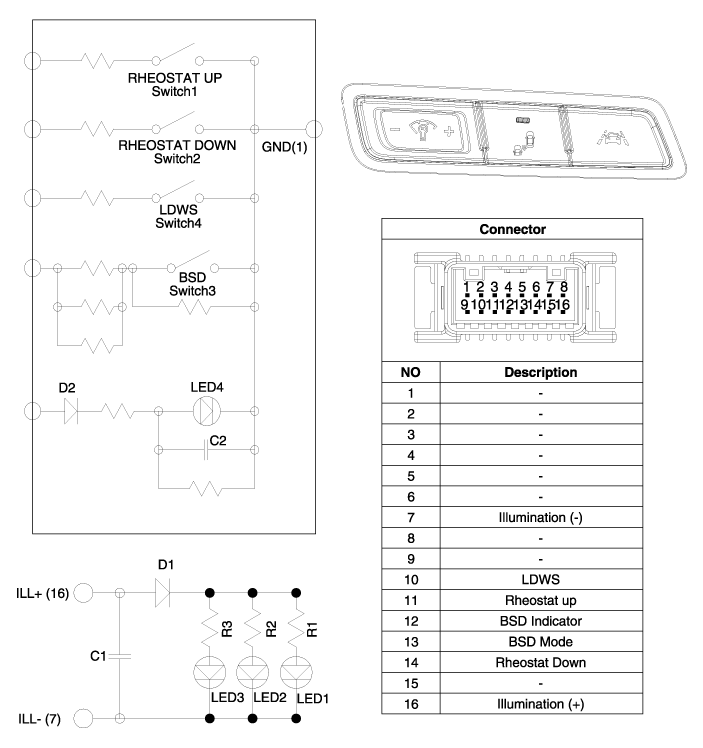

Circuit Diagram

Blind Spot Detection Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper. (Refer to Body - "Rear Bumper") 3. Remove the BSD unit (A) after loosening the mounting nuts. &nb ...

Blind Spot Detection Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 3. Rmove the blind spot detection (BSD) switch (A) after diseng ...
