Hyundai Sonata: Cooling System / Water Temperature Control Assembly Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Engine Mechanical System / Cooling System / Water Temperature Control Assembly Components and Components Location

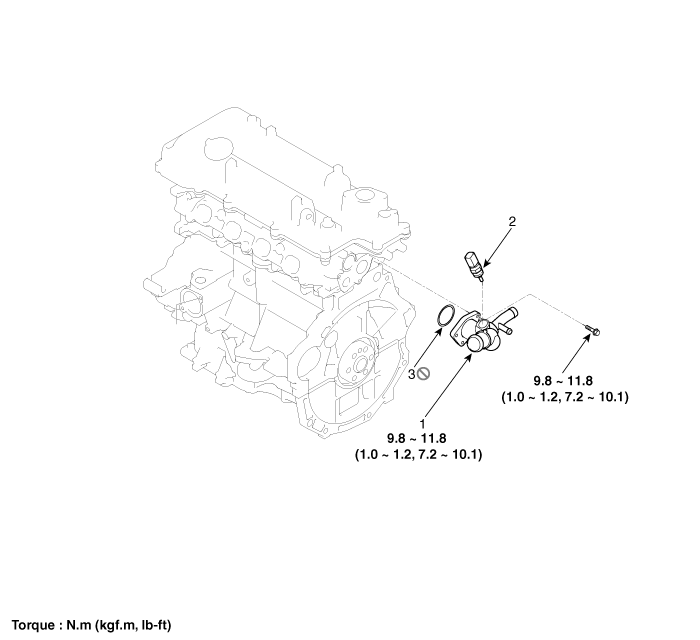

Components

1. Water temperature control assembly
2. Water temperature sensor
3. Gasket
