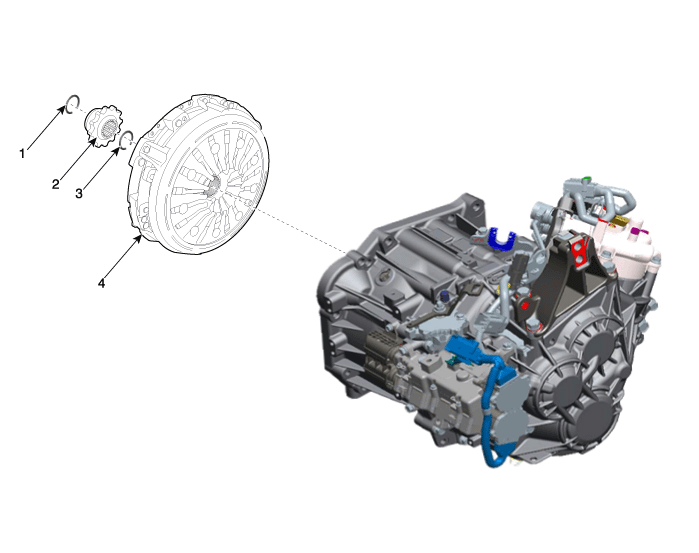

Components

1. Retaining ring
2. Spline hub
3. Snap ring
4. Dual clutch assembly

Description and Operation
Description • Components location : DCT (Dual Clutch Transmission) • Function The dual clutch is installed within the transmission. The dual clutch comprises an odd clutch and an ev ...

Dual Clutch Assembly Repair procedures
Removal 1. Remove the dual clutch transmission from the vehicle. (Refer to Dual Clutch System - "Repair procedures") 2. Remove the retaining (A) and then removing the spline hub (B). 3. ...
