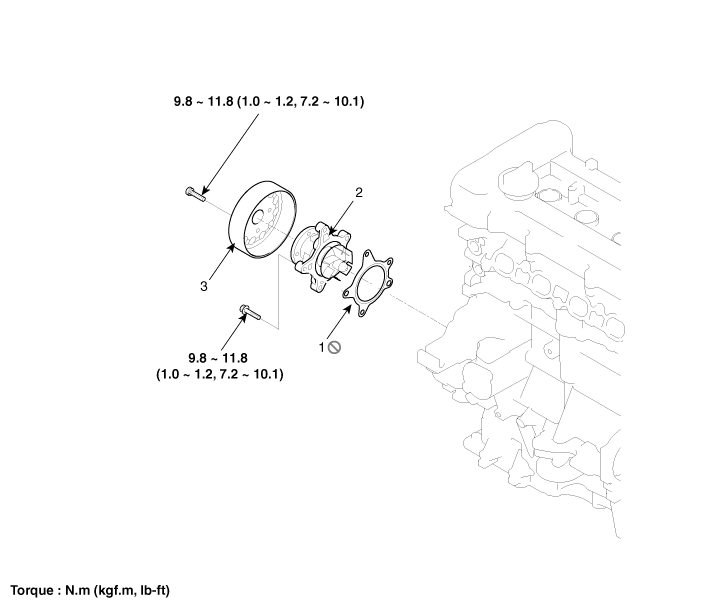

Components

1. Gasket
2. Water pump
3. Water pump pulley

Water Pipe Repair procedures
Removal and Installation 1. Remove the water temperature control assembly. (Refer to Colling System - "Water Temperature Control Assembly") 2. Remove the water pipe (A). Tightening torque ...

Water pump Repair procedures
Removal 1. Loosen the drain plug (A), and drain the engine coolant. Remove the radiator cap to drain with speed.     System is under high pressure when the engine is hot.To avoi ...
