Replacement

•	Wear gloves to protect hands from injury.

•	When removing and installing the trunk lid, an assistant is necessary.

1.	Remove the trunk lid trim. (Refer to Trunk Lid - "Trunk Lid Trim")

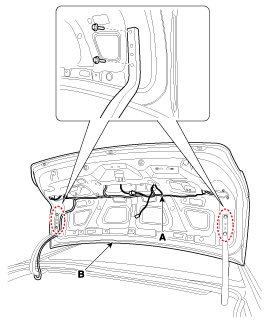

2.	Disconnect the connectors and trunk lid wiring harness (A).

After loosening the mounting bolts, then remove the trunk lid assembly (B).

Tightening torque :

6.9 ~ 8.8 N.m (0.7 ~ 0.9 kgf.m, 5.1 ~ 6.5 lb-ft)

Install in the reverse order of removal.

•	Make sure the trunk lid locks / unlocks and opens / closes properly.

•	Adjust the trunk lid alignment.

•	Make sure the connectors are connected in properly.

•	Replace any damaged clips.
