Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Assembly Components and Components Location

Component Location

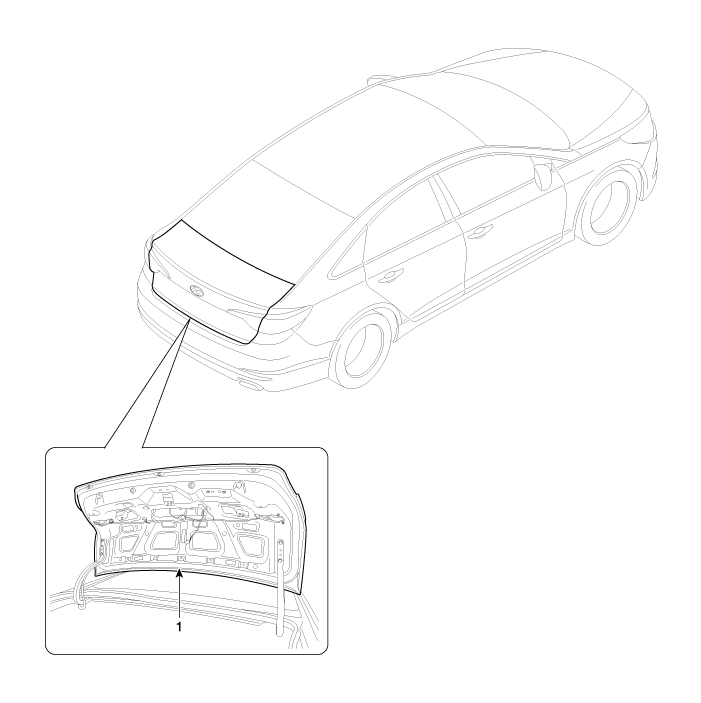

1. Trunk lid assembly


Repair procedures
Adjustment 1. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left. 2. Adjust the trunk lid height by turning the trunk lid ove ...

Trunk Lid Assembly Repair procedures
Replacement     • Wear gloves to protect hands from injury.     • When removing and installing the trunk lid, an assistant is necessary. 1. ...
