Hyundai Sonata: Timing System / Drive Belt Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Engine Mechanical System / Timing System / Drive Belt Components and Components Location

Components

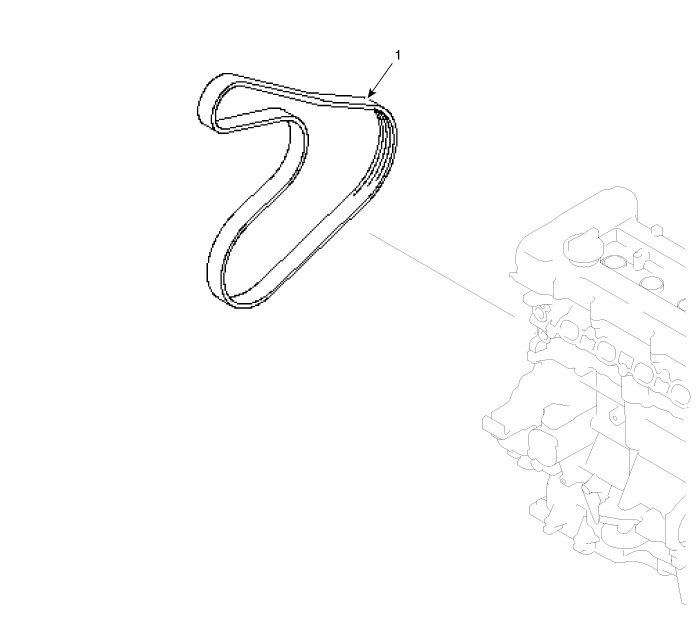

1. Drive belt

Components and Components Location
Components 1.  Timing chain2.  Timing chain guide3.  Timing chain arm4.  Timing chain auto tensioner5.  Timing chain cover6.  Drive belt idler7.  Water pump gas ...

Drive Belt Repair procedures
Removal 1. Disconnect the battery negative terminal. 2. Loosen the alternator tension adjusting bolt (A) to loosen tension. 3. Remove the drive belt (A). Inspection Drive Belt Inspecti ...
