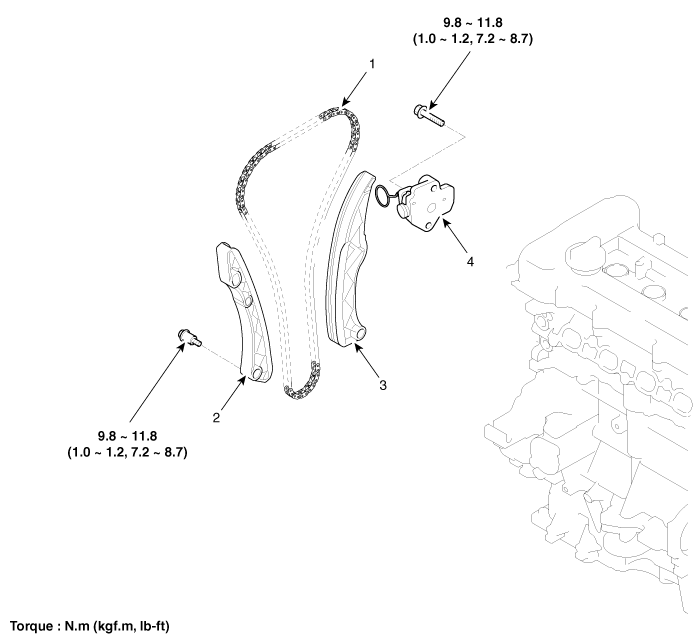

Components

1.  Timing chain
2.  Timing chain guide
3.  Timing chain arm
4.  Timing chain auto tensioner

Timing Chain Cover Repair procedures
Removal     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. ...

Timing Chain Repair procedures
Removal 1. Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover. 2. Remove the timing chain cover. (Refer to Timing System - "Timing Chain ...
