Hyundai Sonata LF: Body Dimensions / Side Body Body Repair

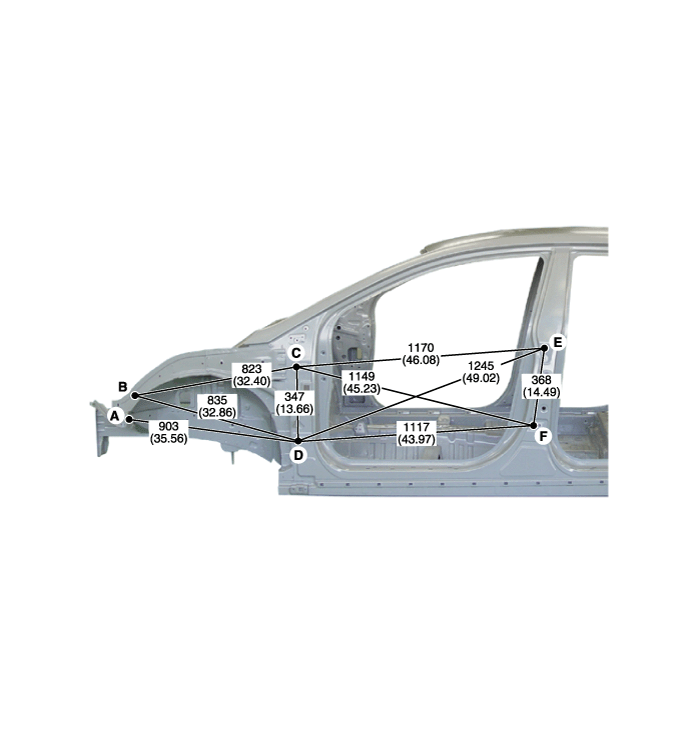

| Side Body A |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

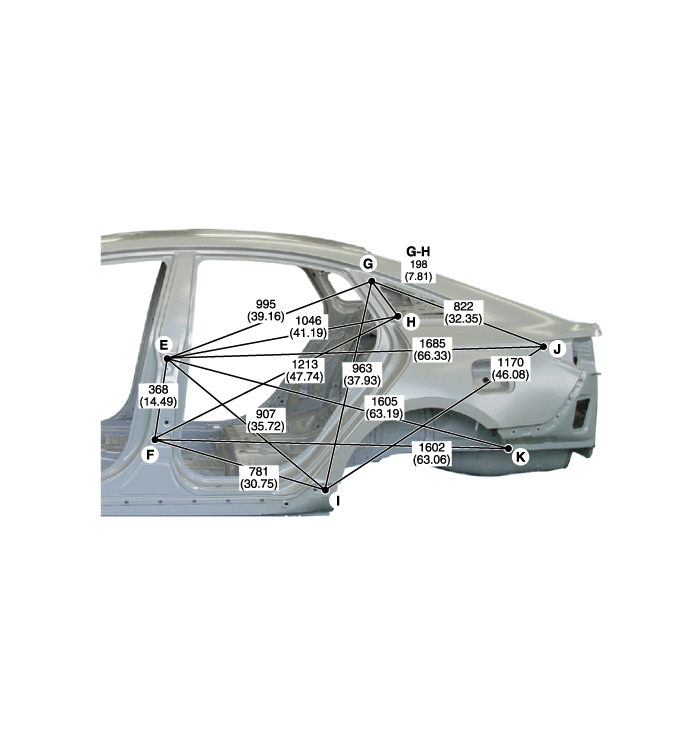

| Side Body B |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Fender apron tooling hole (O7) | Fender apron panel tooling hole (O7) | Front door upper hinge mounting hole (O13) |
|
|
|
| Front door lower hinge mounting hole (O13) | Rear door upper hinge mounting hole (O13) | Rear door lower hinge mounting hole (O13) |
|
|
|
| Quarter panel tooling hole (O14) | Quarter fixed glass mounting hole (O5.4) | Side sill moulding tooling hole (12X16) |
|
| |
| Rear combination lamp housing mounting hole (O6) | Quarter panel tooling hole (O14) |
Front Body Body Repair
Front Body A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Front Body B * These dimensions indicated in this figure are actual-measurement dimensions...
Interior Body Repair
Interior A * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Interior B * These dimensions indicated in this figure are actual-measurement dimensions...
