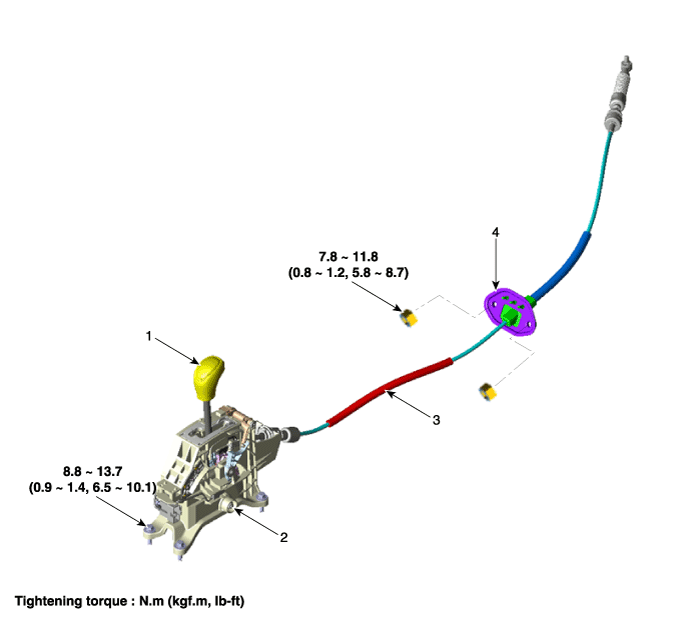

Components

1. Shift lever knob
2. Shift lever assembly
3. Shift cable
4. Shift cable retainer

    Shift Lever Repair procedures

    Removal 1. Disconnect a boots from the console upper cover. 2. Pull the knob (A) in the direction of "F" and remove the knob. 3. Remove the floor console assembly...

    Shift Cable Repair procedures

    Removal 1. Remove the air cleaner assembly and air duct. (Refer to Engine Mechnical System - "Air cleaner") 2. Remove the TCM. (Refer to Dual Clutch Transmission Control System - "TCM") 3...
