Hyundai Sonata LF: Air Conditioning System / Refrigerant Line Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Refrigerant Line Components and Components Location

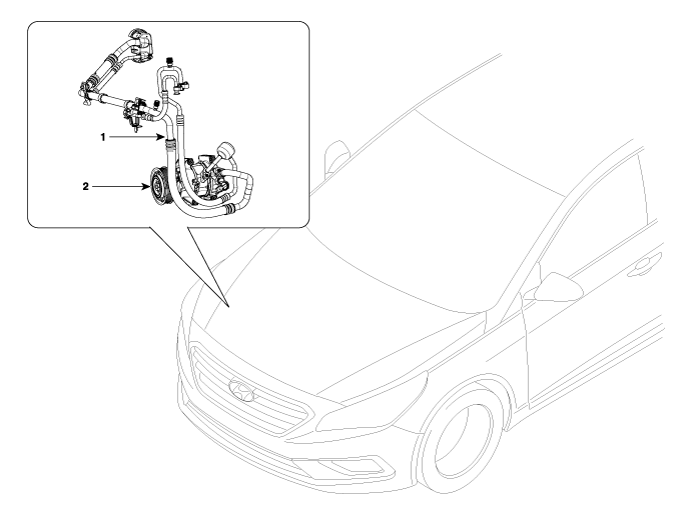

Components Location

1. Refrigerant Line
2. Comperssor

    Compressor oil Repair procedures

    Oil Specification 1. The R-134a system requires synthetic (ND8) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed...

    Refrigerant Line Repair procedures

    Replacement 1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off...
