Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Remove the rear seat back assembly. (Refer to Rear Seat - "Rear Seat Assembly")

3.	Slighty remove the rear door weatherstrip.

4.	Remove the rear door scuff trim. (Refer to Interior Trim - "Door Scuff Trim")

5.	Remove the rear pillar trim. (Refer to Interior Trim - "Rear Wheel House Trim")

After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

[LH]

[RH]

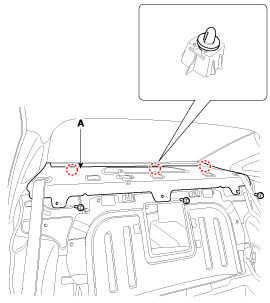

7.	After loosening the mounting screws, then remove the rear package tray trim (A).

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Replace any damage clips.
