Components

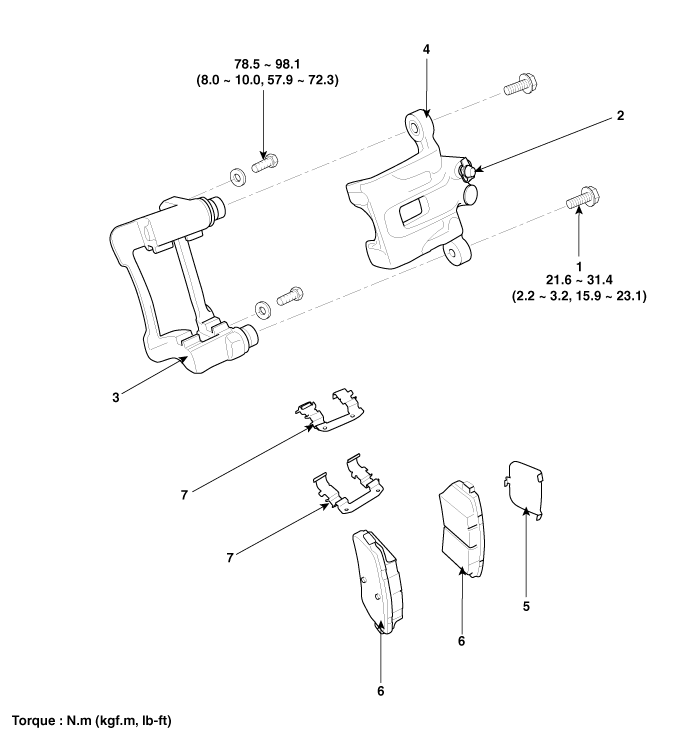

[General]

1. Guide rod bolt
2. Bleed screw
3. Caliper bracket
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer

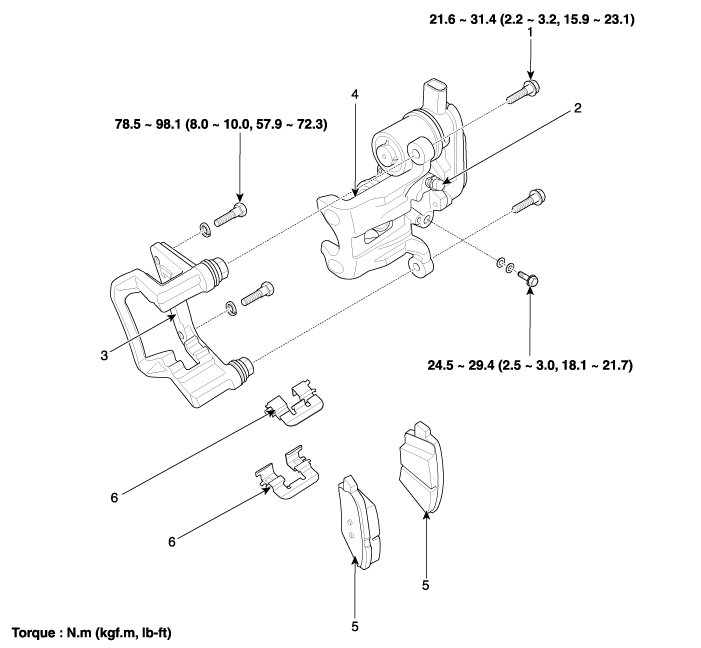

[EPB]

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Brake pad
6. Pad retainer
