Hyundai Sonata: Maintenance / Engine Oil

Checking the Engine Oil Level

1. Follow all of the oil manufacturer’s precautions.

2. Be sure the vehicle is on level ground in P (Park) with the parking brake set and the wheels blocked.

3. Turn the engine on and allow the engine to reach normal operating temperature.

4. Turn the engine off and wait about five minutes for the oil to return to the oil pan.

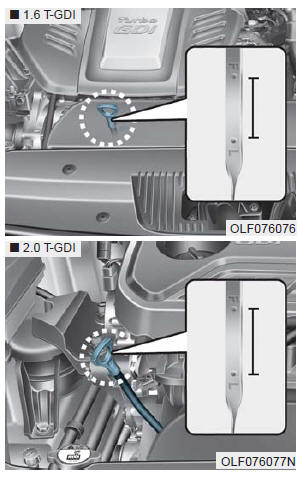

5. Pull the dipstick out, wipe it clean, and re-insert it fully.

6. Pull the dipstick out again and check the level. The level should be between F and L.

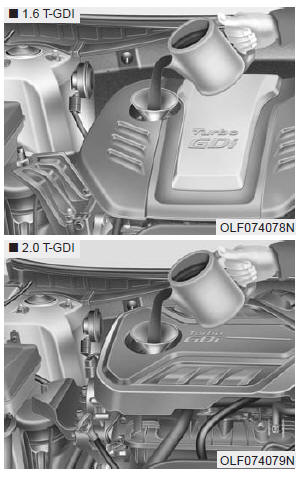

7. If it is near or at L, add enough oil to bring the level to F.

NOTICE

To prevent damage to your engine:

NOTICE

Use only the specified engine oil (refer to "Recommended Lubricants and Capacities" in chapter 8).

Checking the Engine Oil and Filter

Have engine oil and filter changed by an authorized HYUNDAI dealer according to the Maintenance Schedule at the beginning of this chapter.

WARNING

CALIFORNIA PROPOSITION 65 WARNING

Engine oil contains chemicals known to the State of California to cause cancer, birth defects and reproductive harm. Used engine oil may cause irritation or cancer of the skin if left in contact with the skin for prolonged periods of time. Always protect your skin by washing your hands thoroughly with soap and warm water as soon as possible after handling used oil.

Explanation of Scheduled Maintenance Items
Engine Oil and Filter The engine oil and filter should be changed at the intervals specified in the maintenance schedule. If the car is being driven in severe conditions, more frequent oil and filte ...

Engine Coolant
The high-pressure cooling system has a reservoir filled with year-round antifreeze coolant. The reservoir is filled at the factory. Check the antifreeze protection and coolant level at least once a y ...
