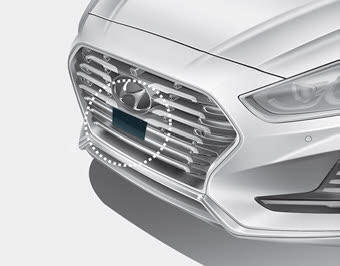

The Smart Cruise Control uses a radar to detect distance to the vehicle ahead.
Radar check message
If the radar or cover is dirty or obscured with foreign matter such as snow, this message will appear. In this case, the system may not function temporarily, but it does not indicate a malfunction of the Smart Cruise Control System. Clean the radar or cover by using a soft cloth.
SCC (Smart Cruise Control) malfunction message
The message will appear when the vehicle to vehicle distance control system is not functioning normally.
Take your vehicle to an authorized HYUNDAI dealer and have the system checked.
CAUTION
