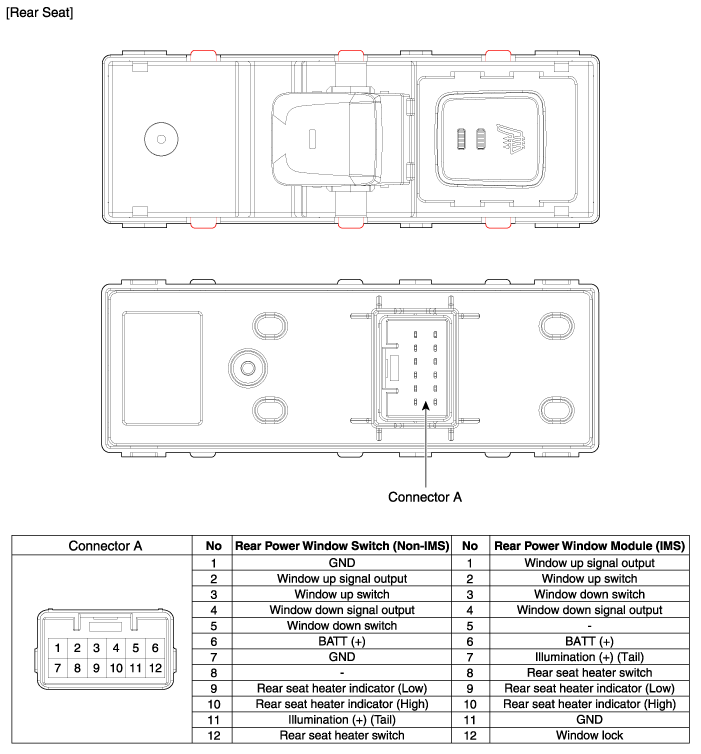

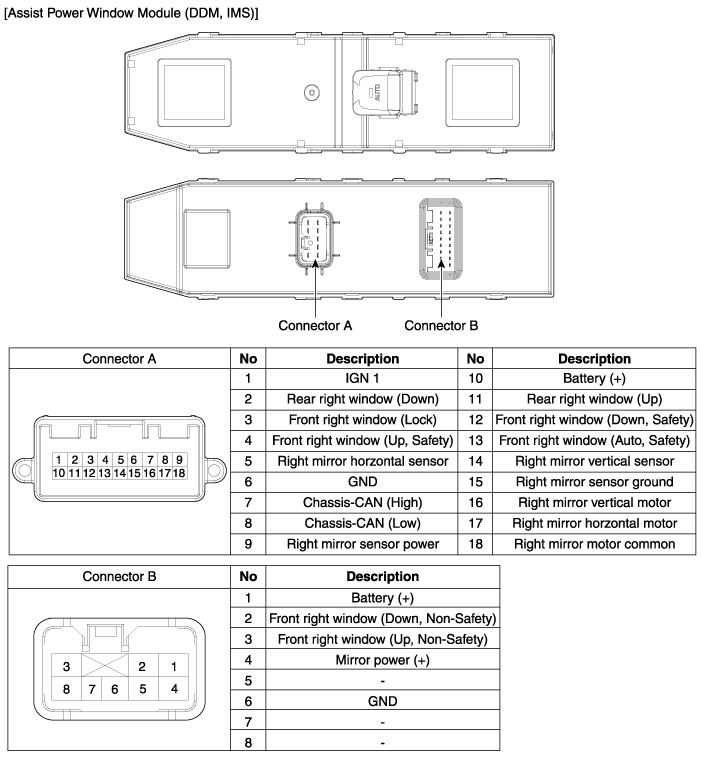

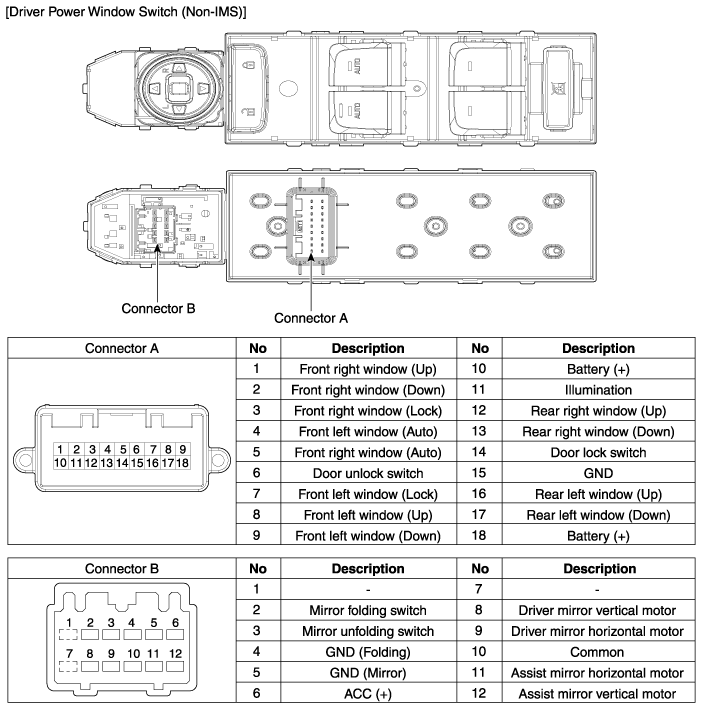

Hyundai Sonata LF: Power Windows / Power Window Switch Components and Components Location

Power Window Motor Repair procedures

Inspection     • Wrap the protective tape on the tool to disassemble with the screwdriver or remover. • Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil...

Power Window Switch Schematic Diagrams

C..
