Hyundai Sonata: Power Door Mirrors / Power Door Mirror Switch Schematic Diagrams

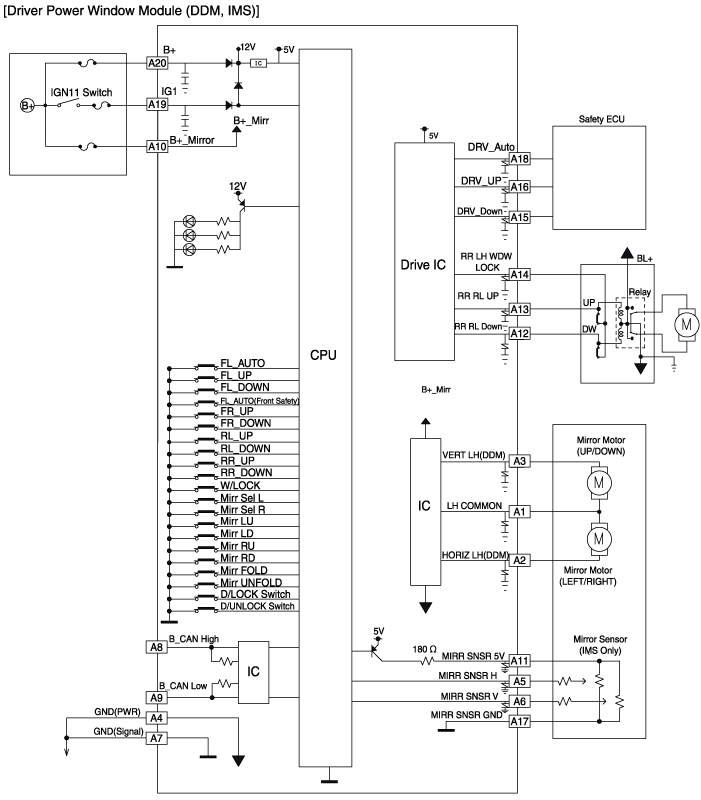

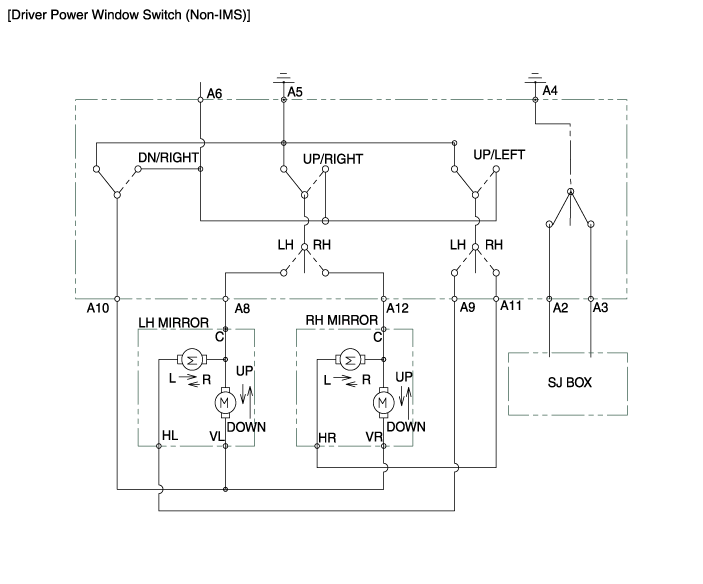

Circuit Diagram

Power Door Mirror Switch Components and Components Location
Components ...

Power Door Mirror Switch Repair procedures
Inspection [Power Window Module (IMS)] 1. Disconnect the negative (-) battery terminal. 2. Remove the front left door trim. (Refer to Body - "Front Door Trim") 3. Disconnect the power mi ...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: AVN Remote Controller Repair procedures
Inspection 1. Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] SwitchConnectorTerminalResistance(±5%)SEEK Up2-5430 ?SEEK Down1.11 k?MODE2.11 k?MUTE3.11 k?Volume (+)4.61 k?Volume (-)6.81 k?Voice10.71 k?SEND18.91 k?END40.91 k? 2. Check for res ...
