Hyundai Sonata: Power Door Mirrors / Power Door Mirror Switch Components and Components Location
| Components |
Components and Components Location
Component Location

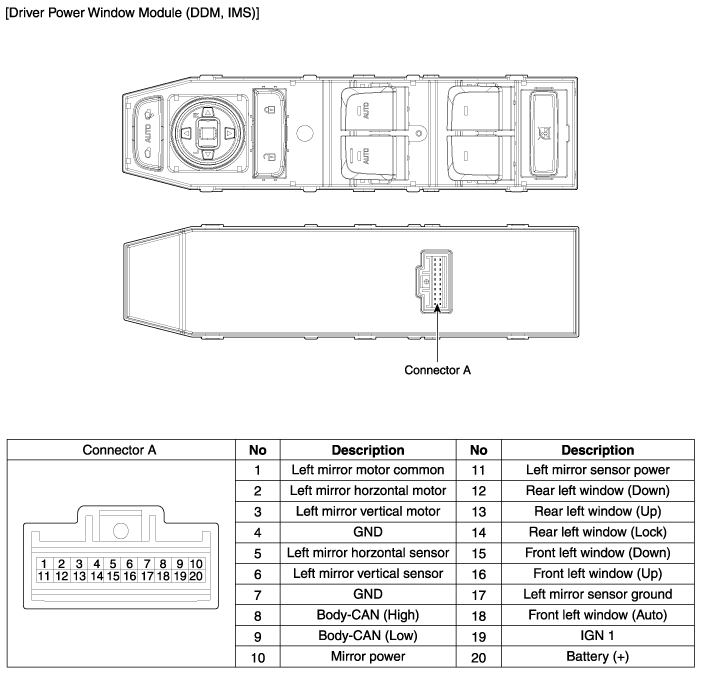

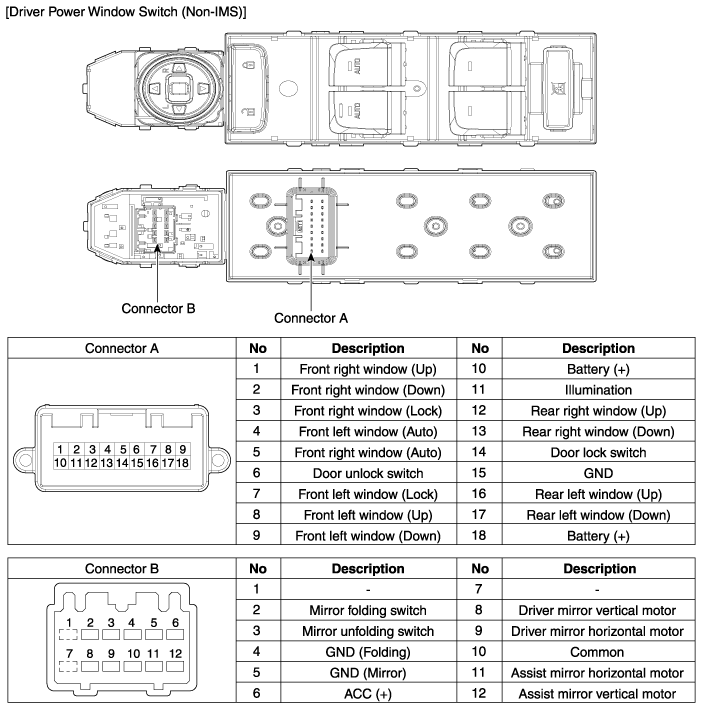

1. Power door mirror2. Power door mirror switch3. Power folding mirror switch
...
Power Door Mirror Switch Schematic Diagrams
Circuit Diagram
...
