Hyundai Sonata LF: Power Door Locks / Power Door Lock Module Components and Components Location

Components and Components Location

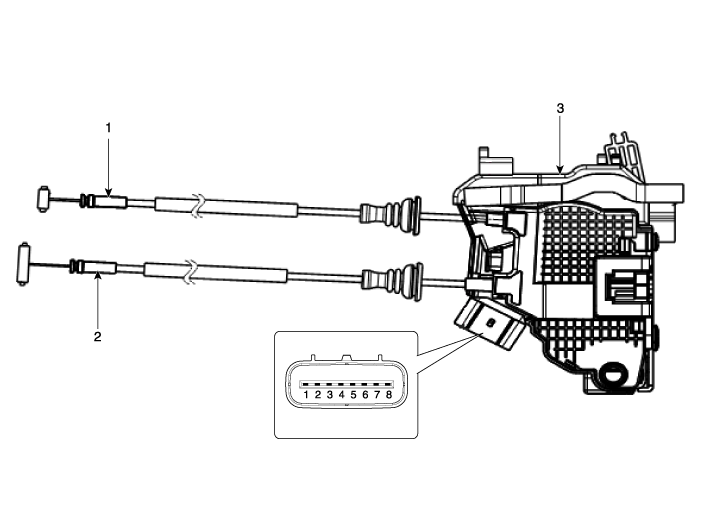

Component Location 1. DDM (Driver Door Module)2. ADM (Assist Door Module)3. SJB (Smart Junction Block)4. Door lock knob5. Trunk lid actuator6. Door latch module7...

Power Door Lock Module Repair procedures

Inspection     • Wrap the protective tape on the tool to disassemble with the screwdriver or remover. • Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Heater Unit Components and Components Location

Component Location 1. Heater unit assembly Compoents (1) 1. Mode actuator2. Mode bracket plate3. Mine link plate4. Temperature control actuator [LH]5. Washer6. Face door lever7. Foot & Defrost midole lever8. Servo lever arm [LH]9. Door lever arm [LH]10...

Hyundai Sonata LF 2014-2019 Service Manual: Troubleshooting

Troubleshooting SymptomSuspect AreaRemedy (Refer to page)Water leaks from panorama sunroofDirt accumulated in drain tubeClear dirt inside of drainClogged drain tubeBlow air into drain to remove dirtBroken or dislocated drain tube, defective or cracked clipCheck tube installation and flange contactDeteriorated roof lid weatherstripReplaceExcessive roof lid-to-body clearance and improperly fitted weatherstripAdjustWind noise around panorama sunroofLoosen or deformed deflector, gaps in body workRetighten adjust or replaceMisaligned weather stripReadjust or replace weather stripSunroof lid makes a noise when moveForeign particles lodged in guide railCheck drive cable and guide rails for foreign particlesLoosen guide rails and lidRetightenMotor runs but panorama sunroof does not move or moves only partiallyForeign particles lodged in guide railAdjust or replaceIncorrect engagement of motor pinion with drive cableDecrease in motor`s clutch slipping forceIncreased sunroof sliding resistance or interference of sunroof with drive cables, weatherstrip, etc...
