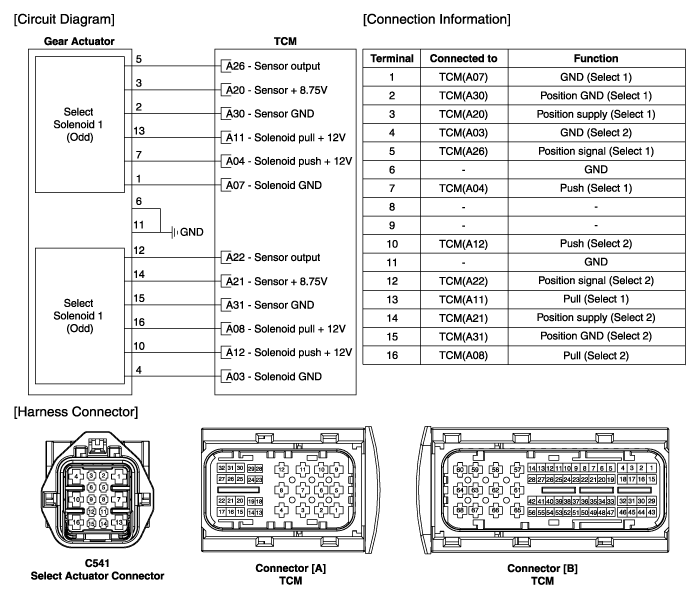

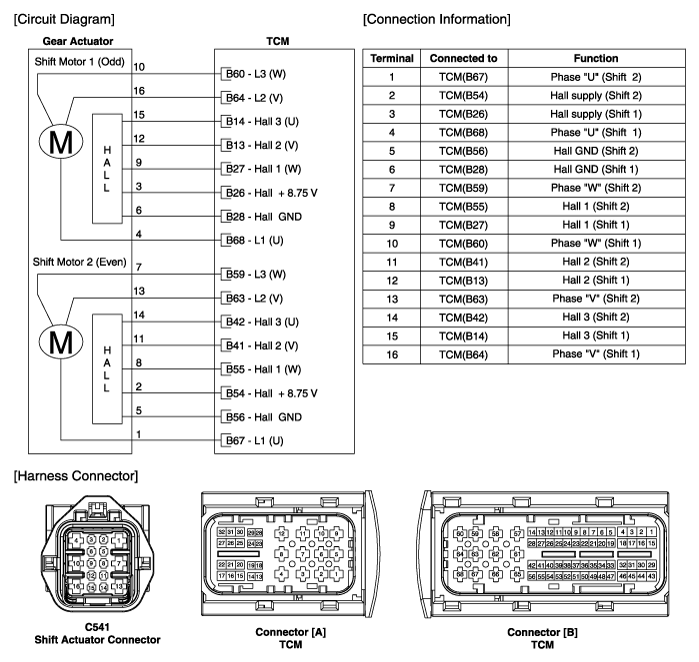

Hyundai Sonata LF: Dual Clutch Transmission Control System / Gear Actuator Assembly Schematic Diagrams

Gear Actuator Assembly Description and Operation

Description • Components location : DCT (Dual Clutch Transmission) • Function The gear actuator comprises the shift motor and select solenoid...

Gear Actuator Assembly Repair procedures

Removal     • When gear actuator removing, set control shaft lever to neutral position. 1. Remove the air cleaner assembly and air duct...
