Hyundai Sonata: Front Seat / Front Seat Assembly Components and Components Location

Components and Components Location

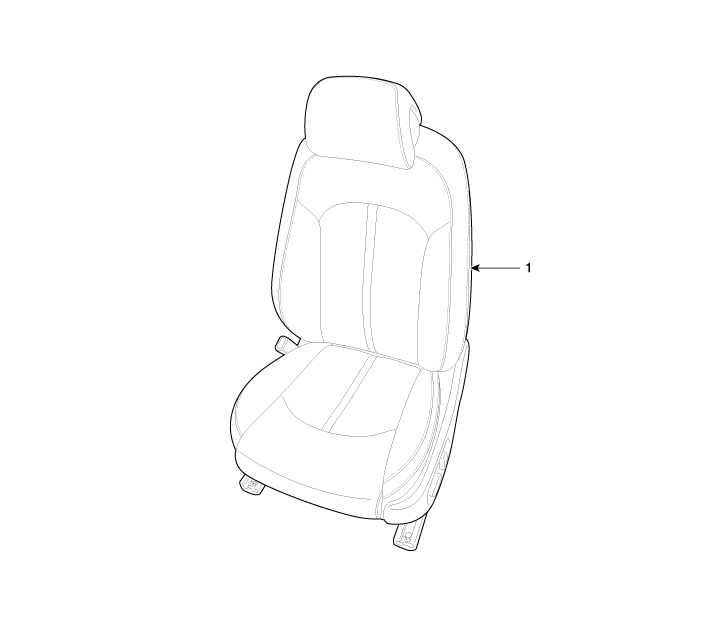

Components [Manual Seat Type] 1. Front seat headrest2. Front seat headrest guide3. Front seat back board4. Front seat back frame assembly5. Front seat back pad6. Front seat back heater7. Front ...

Front Seat Assembly Repair procedures

Replacement     • When folding the seatback forward in state that headrest and seat is upper and seat is moved forward, be careful not to touch the components such as sun ...

Other information:

Hyundai Sonata LF 2014-2019 Service Manual: Heated Steering wheel Schematic Diagrams
Schematic diagram Terminal function Pin NoFunctionA2Heated steering powerA3Swtich signalA13NTC (-)C9NTC (+) ...

Hyundai Sonata LF 2014-2019 Service Manual: Door Mood Lamp Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim. (Refer to Body - "Front Door Trim") 3. Disconnect the door mood lamp connector. 4. Remove the door mood lamp (A). Installation 1. Install the door mood lamp and connector. 2. Install th ...
