Hyundai Sonata: Front Seat / Components and Components Location

Hyundai Sonata LF 2014-2019 Service Manual / Body (Interior and Exterior) / Front Seat / Components and Components Location

Components

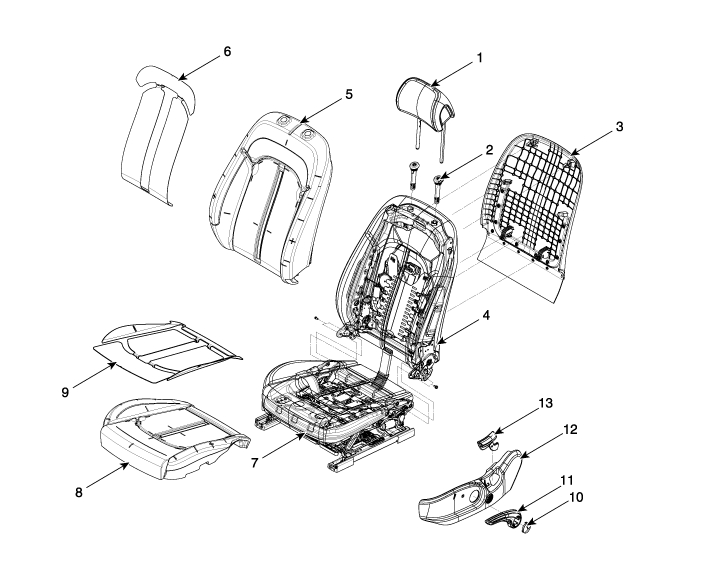

[Manual Seat Type]

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back board
4. Front seat back frame assembly
5. Front seat back pad
6. Front seat back heater
7. Front seat cushion frame assembly

8. Front seat shield cushion pad
9. Front seat cushion heater mat
10. Height lever cap
11. Height lever
12. Front seat outer shield cover
13. Recliner lever

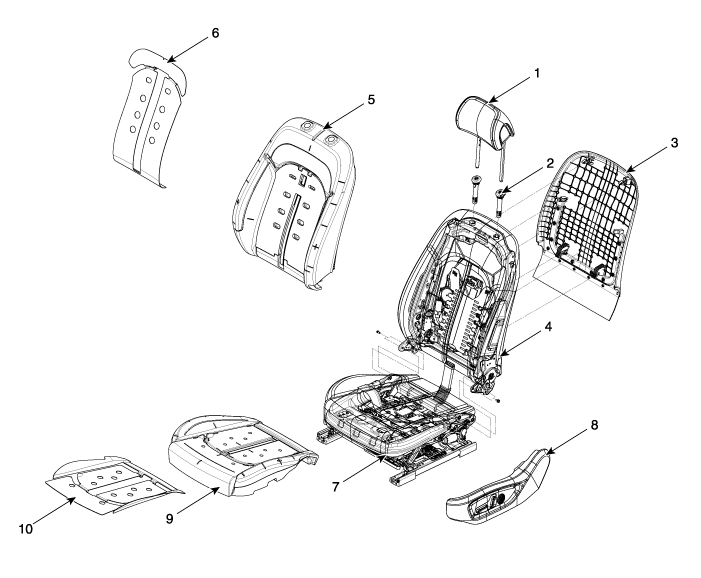

[Power Seat Type]

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back board
4. Front seat back frame assembly
5. Front seat back pad

6. Front seat back heater
7. Front seat cushion frame assembly
8. Front seat outer shield cover
9. Front seat cushion pad
10. Front seat cushion heater
